四通道16位, 1 GSPS ,通道TxDAC +数位类比转换器 Quad 16-Bit,1 GSPS, TxDAC+ Digital-to-Analog Converter

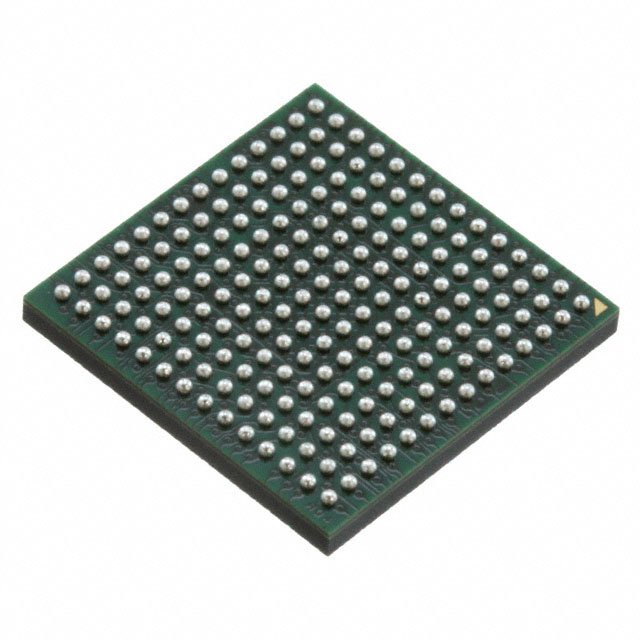

16 位 4 196-CSPBGA(12x12)
得捷:
IC DAC 16BIT A-OUT 196CSPBGA
立创商城:
AD9148BBCZRL
艾睿:
DAC 4-CH Interpolation Filter 16-bit 196-Pin CSP-BGA T/R
安富利:
* Single-carrier W-CDMA ACLR = 80 dBc at 150 MHz IF * Channel-to-channel isolation > 90 dB * Analog output * Adjustable 8.7 mA to 31.7 mA * RL = 25 Ω to 50 Ω * Novel 2×, 4×, and 8× interpolator eases data interface * On-chip fine complex NCO allows carrier placement * anywhere in DAC bandwidth * High performance, low noise PLL clock multiplier * Multiple chip synchronization interface * Programmable digital inverse sinc filter * Auxiliary DACs allow for offset control * Gain DACs allow for I and Q gain matching * Programmable I and Q phase compensation * Digital gain control * Flexible LVDS digital I/F supports 32- or 16-bit bus width * 196-ball CSP_BGA, 12 mm × 12 mm
Chip1Stop:
DAC 4-CH Interpolation Filter 16-bit 196-Pin CSP-BGA T/R
Verical:
DAC 4-CH Interpolation Filter 16-bit 196-Pin CSP-BGA T/R
罗切斯特:
D/A Converter, Serial Input Loading, 0.02us Settling Time, PBGA196
Win Source:
IC DAC 16BIT QD 1GSPS 196CSPBGA
输出接口数 4
通道数 4
位数 16
耗散功率 3.00 W
分辨率Bits 16.0
工作温度Max 85 ℃
工作温度Min -40 ℃
数模转换数DAC 4
安装方式 Surface Mount
引脚数 196
封装 LFBGA-196
长度 12 mm
宽度 12 mm
高度 1.06 mm
封装 LFBGA-196
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Aerospace and Defense, Radar
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
