13位210 MSPS的模拟数字转换器 13-BIT 210 MSPS ANALOG-TO-DIGITAL CONVERTER
The ADS5440 is a 13-bit 210 MSPS analog-to-digital converter ADC that operates from a 5 V supply, while providing LVDS-compatible digital outputs from a 3.3 V supply. The ADS5440 input buffer isolates the internal switching of the onboard track and hold T&H from disturbing the signal source. An internal reference generator is also provided to further simplify the system design. The ADS5440 has outstanding low noise and linearity over input frequency.

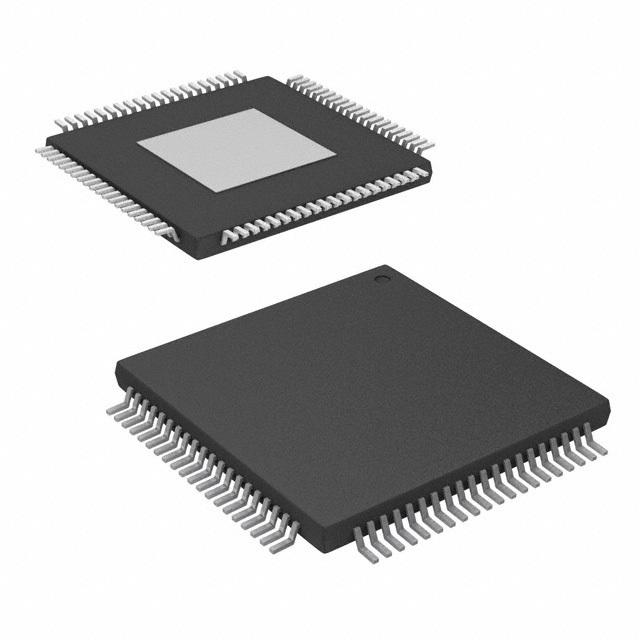

The ADS5440 is available in an 80-pin TQFP PowerPAD package. The ADS5440 is built on a state of the art Texas Instruments complementary bipolar process BiCom3X and is specified over the full industrial temperature range -40°C to 85°C.
供电电流 340 mA
电路数 1
通道数 1
位数 13
耗散功率 2280 W
采样率 210 Msps
功耗 2.25 W
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2280 mW
输入通道数 1
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 80
封装 TQFP-80
封装 TQFP-80
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 3A001.a.5.4
