AD5370BSTZ-REEL

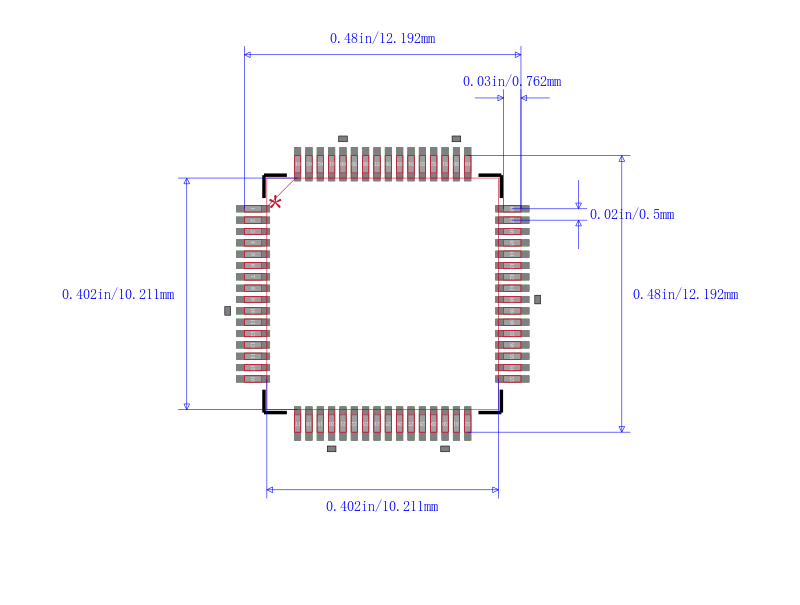

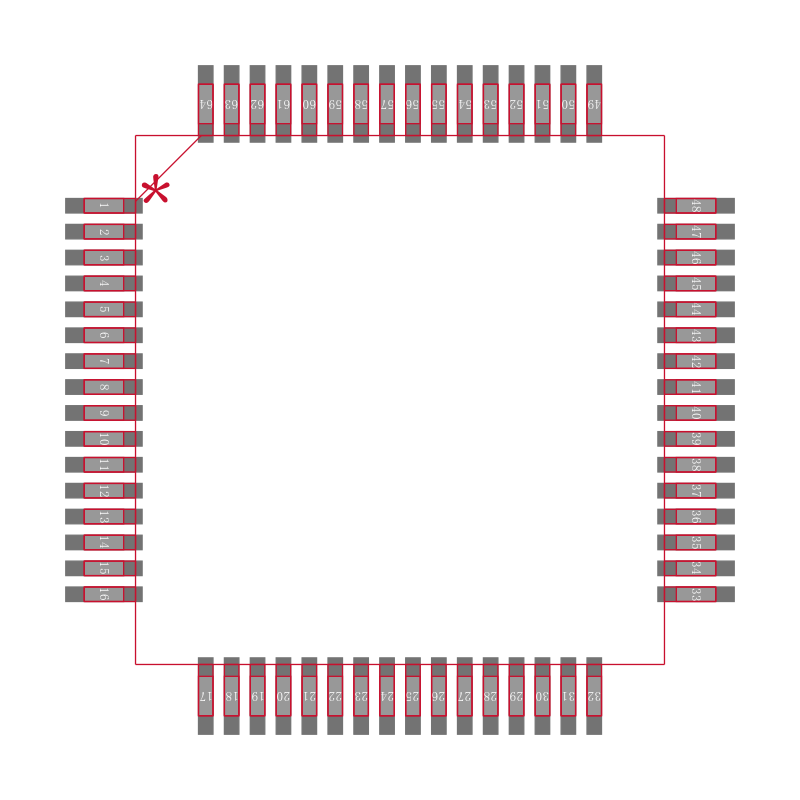

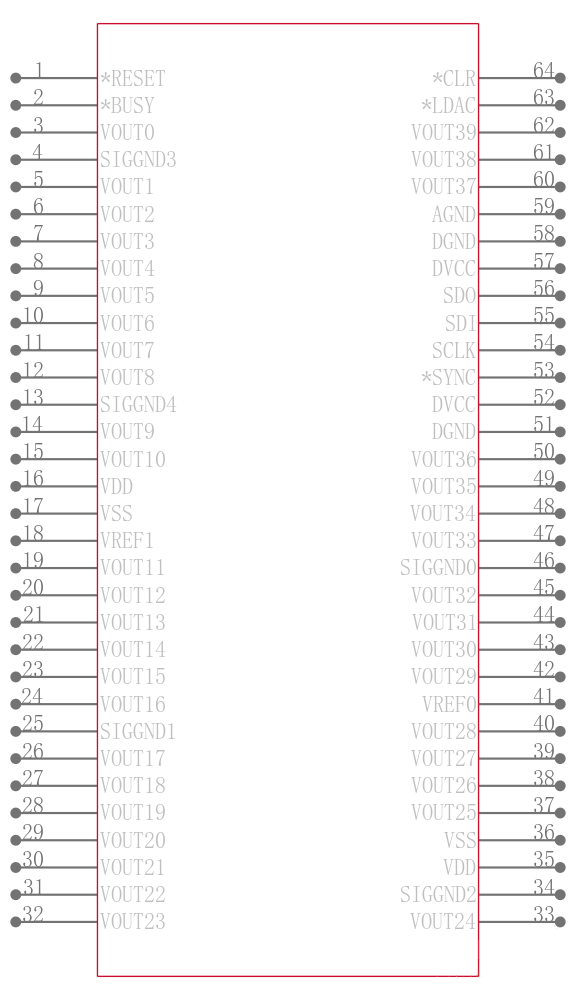

DAC 40CH Resistor-String 16Bit 64Pin LQFP T/R

Product Details

The AD5370

.

contains forty 16-bit DACs in a single 64-lead LFCSP and a 64-lead LQFP. The device provides buffered voltage outputs with a span that is 4× the reference voltage. The gain and offset of each DAC channel can be independently trimmed to remove errors. For even greater flexibility, the device is divided into five groups of eight DACs. Three offset DAC channels allow the output range of blocks to be adjusted. Group 0 can be adjusted by Offset DAC 0, Group 1 can be adjusted by Offset DAC 1, and Group 2 to Group 4 can be adjusted by Offset DAC 2.

The AD5370 offers guaranteed operation over a wide supply range, with VSS from −16.5 V to −4.5 V and VDD from +9 V to +16.5 V. The output amplifier headroom requirement is 1.4 V operating with a load current of 1 mA.

The AD5370 has a high speed serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards and can handle clock speeds of up to 50 MHz.

The DAC registers are updated on receipt of new data. All the outputs can be updated simultaneously by taking the LDAC input low. Each channel has a programmable gain and an offset adjust register to allow removal of gain and offset errors.

Each DAC output is gained and buffered on chip with respect to an external SIGGNDx input. The DAC outputs can also be switched to SIGGNDx via the CLR pin.

**Applications**

.

Level setting in automatic test equipment ATE

.

Variable optical attenuators VOA

.

Optical switches

.

Industrial control systems

.

Instrumentation

* Protected by U.S. Patent No. 5,969,657; other patents pending.

### Features and Benefits

.

40-channel DAC in 64 Lead LFCSP and LQFP

.

Guaranteed monotonic to 16 bits

.

Maximum output voltage span of

4 × VREF

20 V

.

Nominal output voltage range of -4 V to +8 V

.

Multiple, independent output span available

.

System calibration function allowing user-programmable offset and gain

.

See Data Sheet for Additional Information
