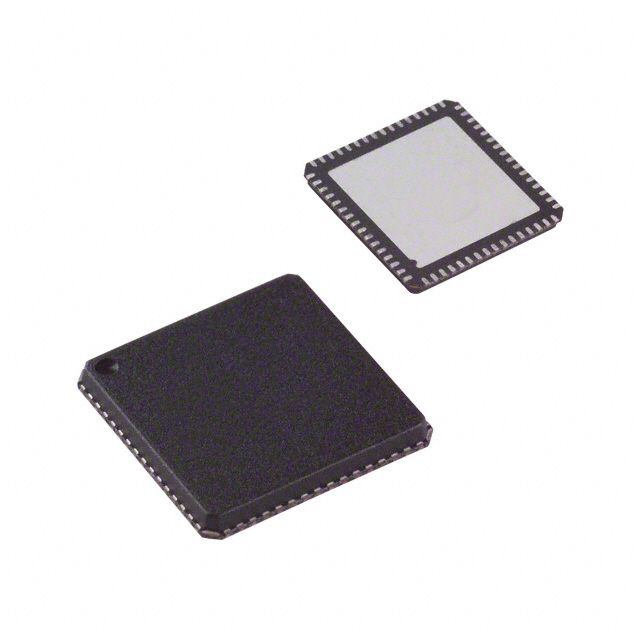

12位， 170 MSPS / 210 MSPS / 250 MSPS ， 1.8 V双通道模拟数字转换器（ ADC ） 12-Bit, 170 MSPS/210 MSPS/250 MSPS,1.8 V Dual Analog-to-Digital Converter ADC
Easily perform calculations on real world physical signals such as light and temperature by using this ADC from Analog Devices to convert those analog signals into digital data that a computer can read. This device"s digital interface is parallel|lvds. This device is based on Pipelined architecture. It has a differential input signal. This ADC has a resolution of 12bit. This ADC has an input voltage of 1.75 Vp-p. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 1.70V min
供电电流 252 mA
电路数 2
通道数 2
位数 12
耗散功率 770 mW
采样率 250 Msps
分辨率Bits 12.0
输入电容 2.50 pF
输入阻抗 20.0 kΩ
模数转换数ADC 2
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
输入通道数 2
电源电压Max 1.9 V
电源电压Min 1.7 V
安装方式 Surface Mount

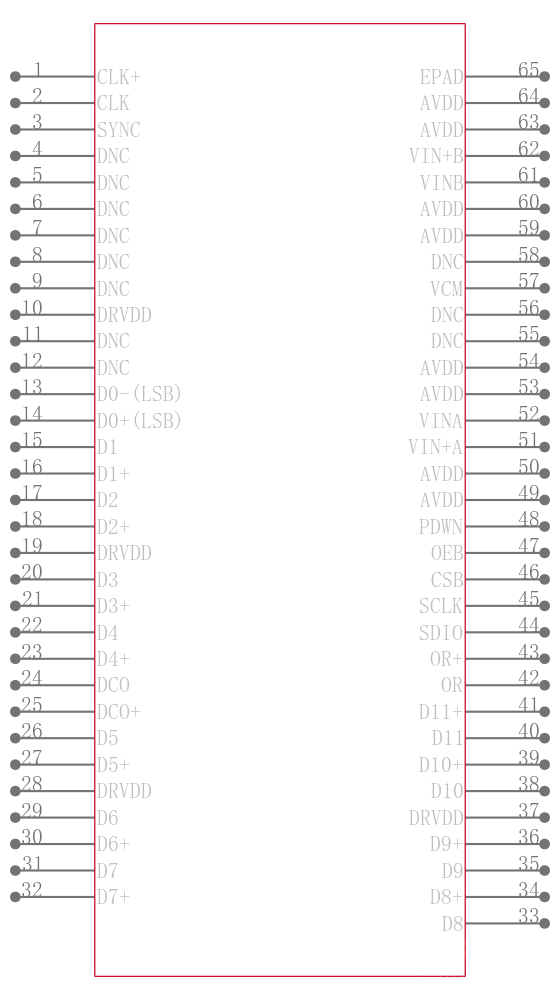

引脚数 64

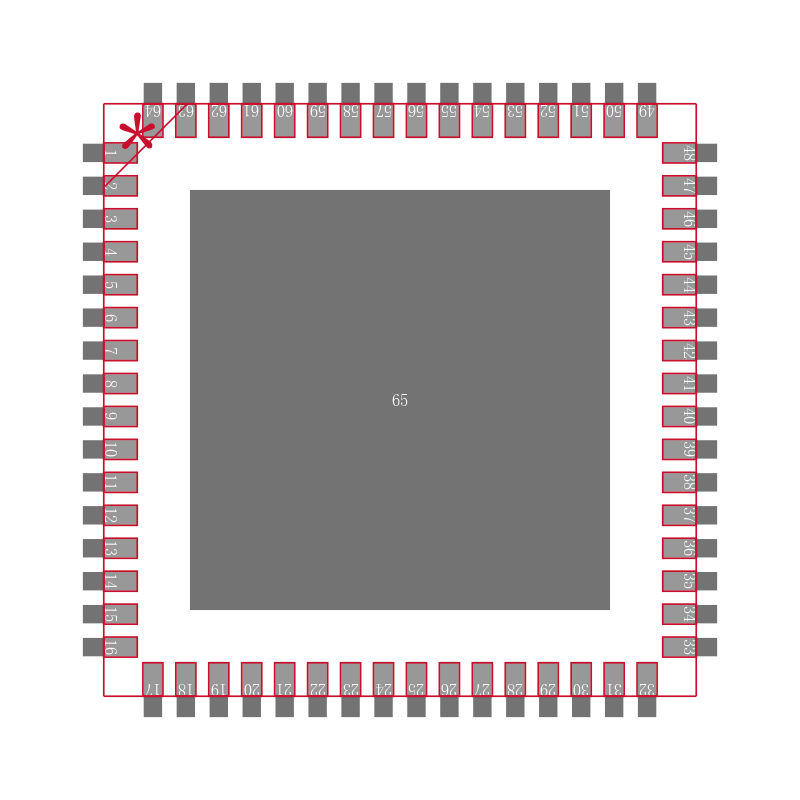

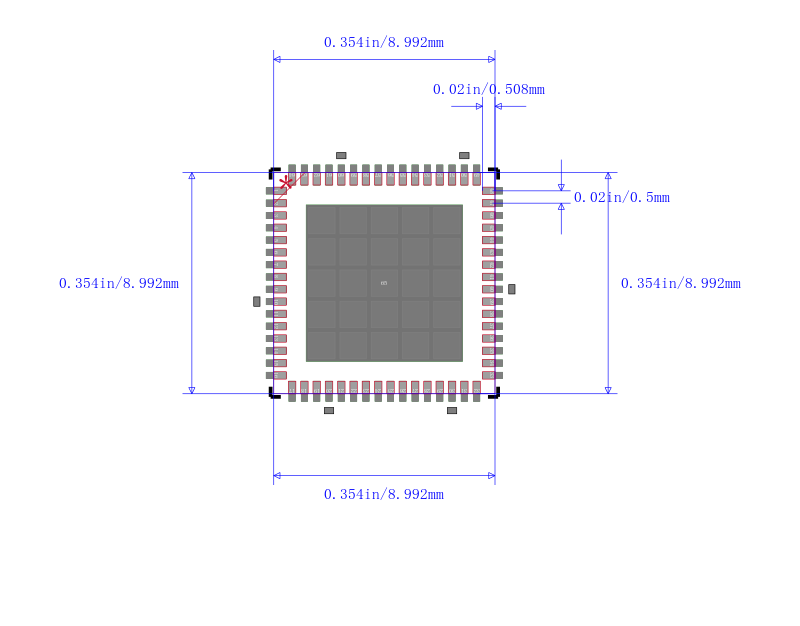

封装 LFCSP-64
高度 0.83 mm
封装 LFCSP-64
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 3A991.c.2
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD9613BCPZ-250 ADI 亚德诺 | 当前型号 | 当前型号 |
AD9613BCPZRL7-250 亚德诺 | 完全替代 | AD9613BCPZ-250和AD9613BCPZRL7-250的区别 |
