ADS62P28IRGCT

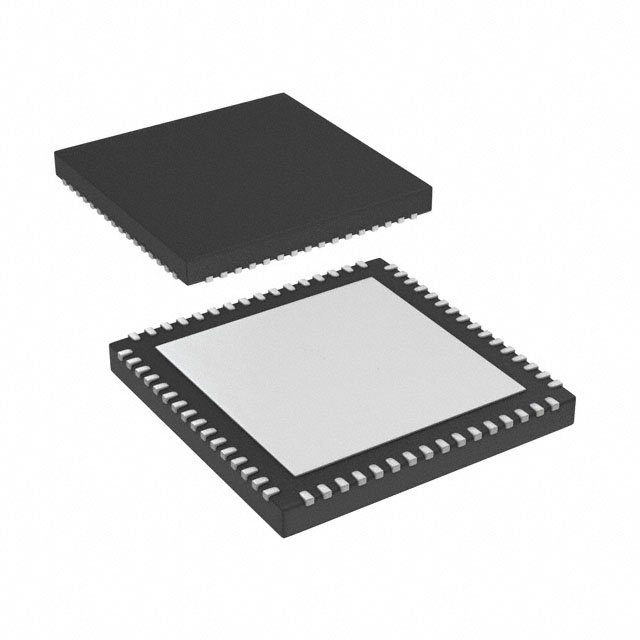

ADS62P28IRGCT图片1
ADS62P28IRGCT图片2
ADS62P28IRGCT图片3
ADS62P28IRGCT图片4
ADS62P28IRGCT图片5
ADS62P28IRGCT图片6
ADS62P28IRGCT图片7
ADS62P28IRGCT图片8
ADS62P28IRGCT图片9
ADS62P28IRGCT概述

双通道14位/ 12位, 250 / 210 - MSPS ADC,具有DDR LVDS和并行CMOS输出 Dual Channel 14-/12-Bit, 250-/210-MSPS ADC With DDR LVDS and Parallel CMOS Outputs

The ADS62Px9/x8 is a family of dual channel 14-bit and 12-bit A/D converters with sampling rates up to 250 MSPS. It combines high dynamic performance and low power consumption in a compact 64 QFN package. This makes it well-suited for multi-carrier, wide band-width communications applications.

The ADS62Px9/x8 has gain options that can be used to improve SFDR performance at lower full-scale input ranges. It includes a dc offset correction loop that can be used to cancel the ADC offset. Both DDR LVDS Double Data Rate and parallel CMOS digital output interfaces are available.

It includes internal references while the traditional reference pins and associated decoupling capacitors have been eliminated. Nevertheless, the device can also be driven with an external reference. The device is specified over the industrial temperature range –40°C to 85°C.

ADS62P28IRGCT中文资料参数规格
技术参数

电路数 2

通道数 2

耗散功率 920 mW

功耗 1.14 W

模数转换数ADC 2

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 1050 mW

输入通道数 2

封装参数

安装方式 Surface Mount

引脚数 64

封装 VQFN-64

外形尺寸

封装 VQFN-64

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

ADS62P28IRGCT引脚图与封装图
ADS62P28IRGCT引脚图
ADS62P28IRGCT封装焊盘图
