AD6642BBCZ

双中频接收机 Dual IF Receiver

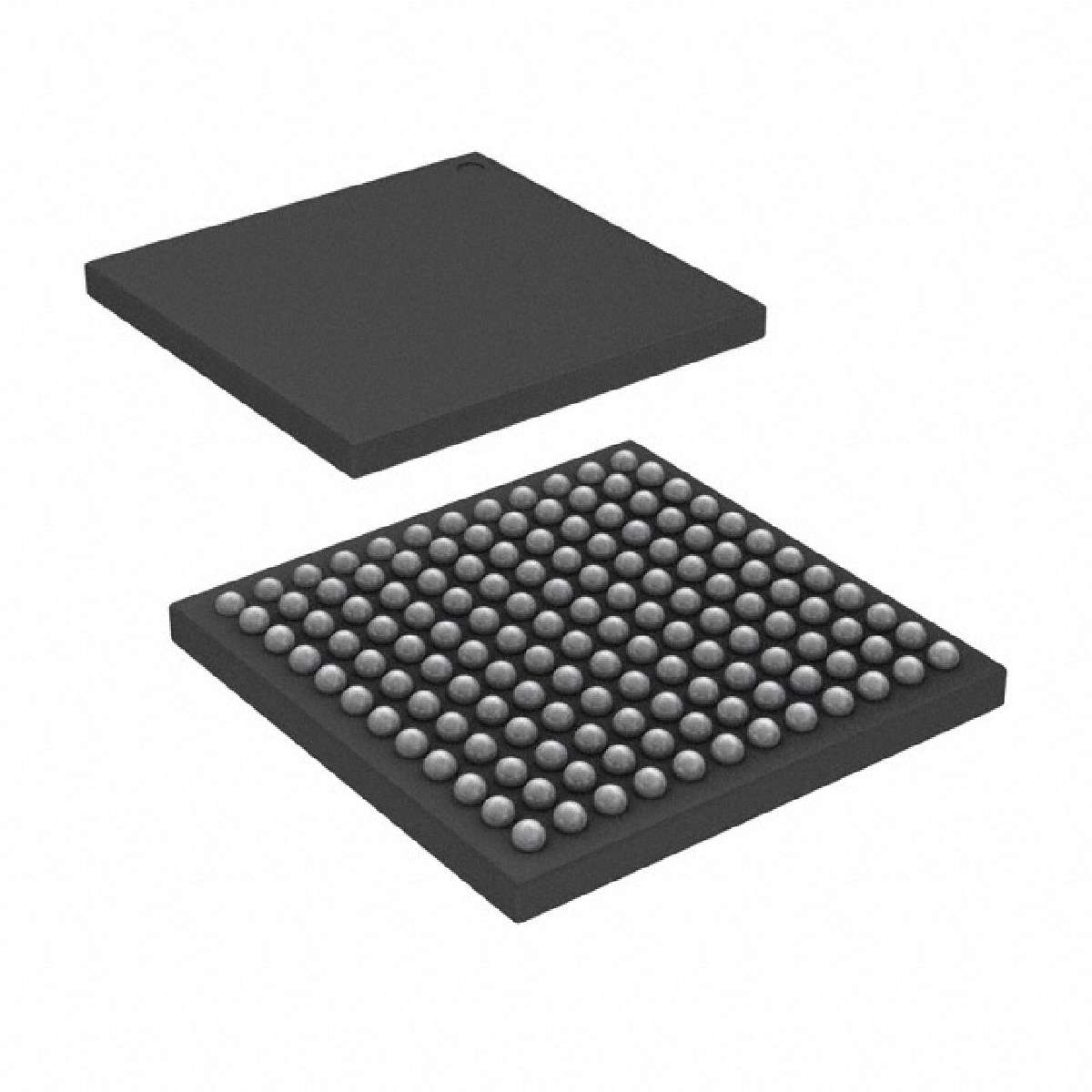

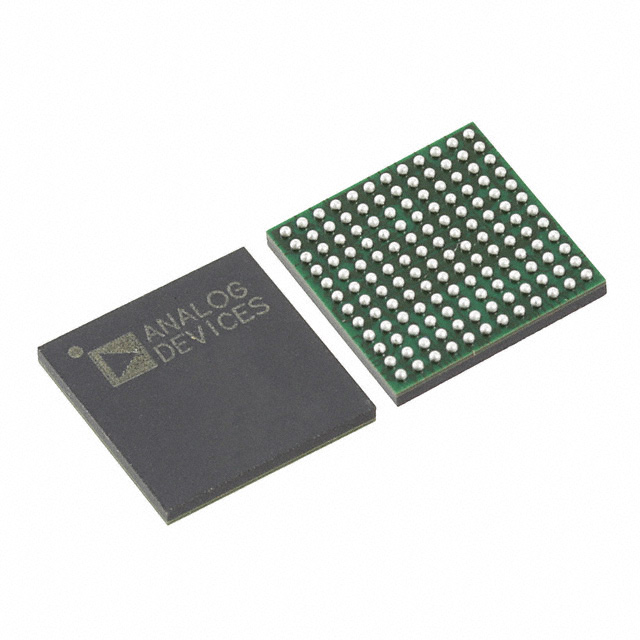

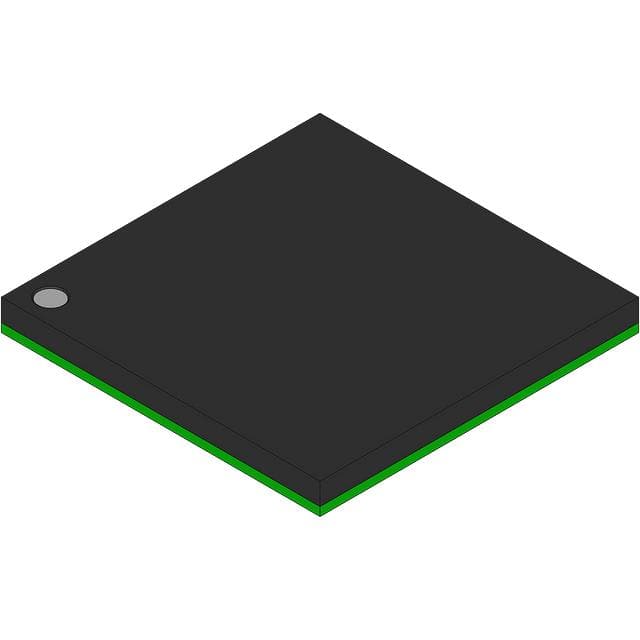

RF IC IF 接收器 CDMA，LTE，W-CDMA，WiMAX - 采样率达 200MSPS 144-CSBGA（10x10）

得捷:
IC IF RCVR 11BIT 200MSPS 144BGA

立创商城:
AD6642BBCZ

贸泽:
RF Receiver IC 11B Dual IF Diversity Receiver

艾睿:
Get optimal performance without sacrificing speed or accuracy with this AD6642BBCZ ADC from Analog Devices! This device is based on Pipelined architecture. This device&s;s digital interface is serial 3-wire, spi|lvds. It has a differential input signal. This ADC has a resolution of 11bit. This ADC has an input voltage of 1.75 Vp-p. This ADC has a temperature range of -40 °C to 85 °C.

安富利:
* 11-bit, 200 MSPS output data rate per channel * Integrated noise shaping requantizer NSR * Performance with NSR enabled * SNR: 75.5 dBFS in 40 MHz band to 70 MHz @ 185 MSPS * SNR: 73.7 dBFS in 60 MHz band to 70 MHz @ 185 MSPS * Performance with NSR disabled * SNR: 66.5 dBFS to 70 MHz @ 185 MSPS * SFDR: 83 dBc to 70 MHz @ 185 MSPS * Low power: 0.62 W @ 185 MSPS * 1.8 V analog supply operation * 1.8 V LVDS ANSI-644 levels output * 1-to-8 integer clock divider * Internal ADC voltage reference * 1.75 V p-p analog input range programmable to 2.0 V p-p * Differential analog inputs with 800 MHz bandwidth * 95 dB channel isolation/crosstalk * Serial port control * User-configurable built-in self-test BIST capability * Energy-saving power-down modes

Chip1Stop:
Dual Channel Dual ADC Pipelined 200Msps 11-bit Serial 3-Wire, SPI/LVDS 144-Pin CSP-BGA Tray

Verical:
Dual Channel Dual ADC Pipelined 200Msps 11-bit Serial 3-Wire, SPI/LVDS 144-Pin CSP-BGA Tray

罗切斯特:
Dual ADC Pipelined 200Msps 11-bit Serial 3-Wire, SPI/LVDS 144-Pin CSP-BGA Tray
