16位二百分之一百七- MSPS模拟 - 数字转换器 16-Bit, 170/200-MSPS Analog-to-Digital Converters
Converting digital signals from analog is easy with Texas Instruments" ADC. Its maximum power dissipation is 2350 mW. This device"s digital interface is parallel|lvds. It has a differential input signal. This device is based on Pipelined architecture. This ADC has a resolution of 16bit. This ADC has an input voltage of 3 Vp-p. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
供电电流 310 mA
电路数 1
通道数 1
位数 16
耗散功率 2160 mW
采样率 200 Msps
功耗 2.16 W
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2350 mW
输入通道数 1
安装方式 Surface Mount

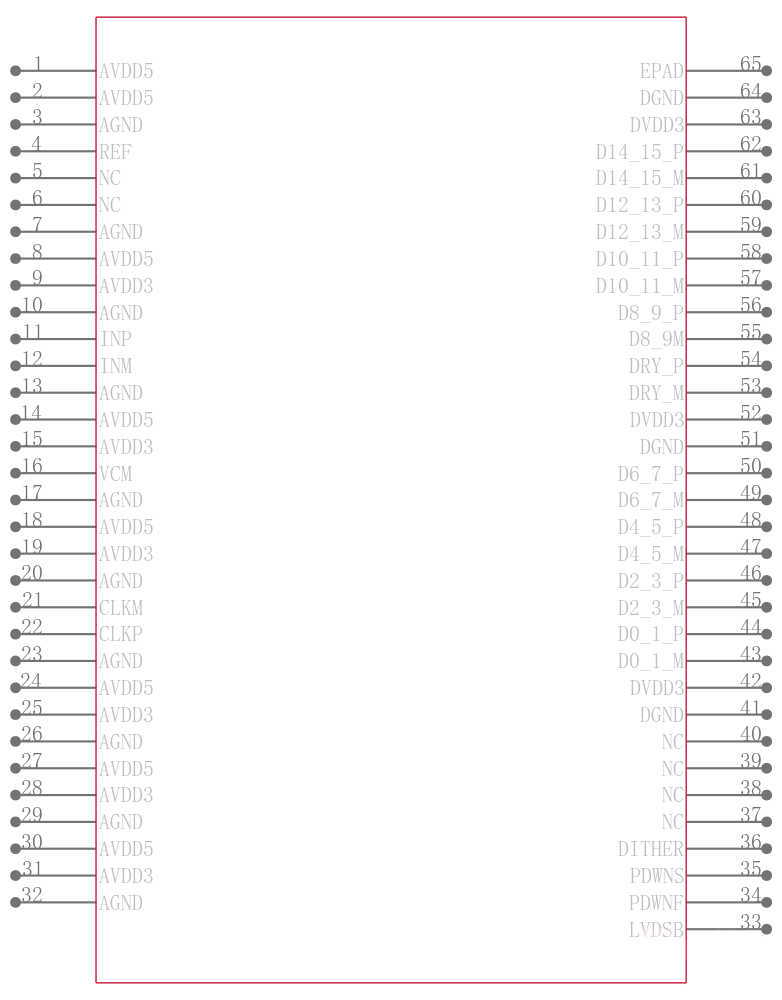

引脚数 64

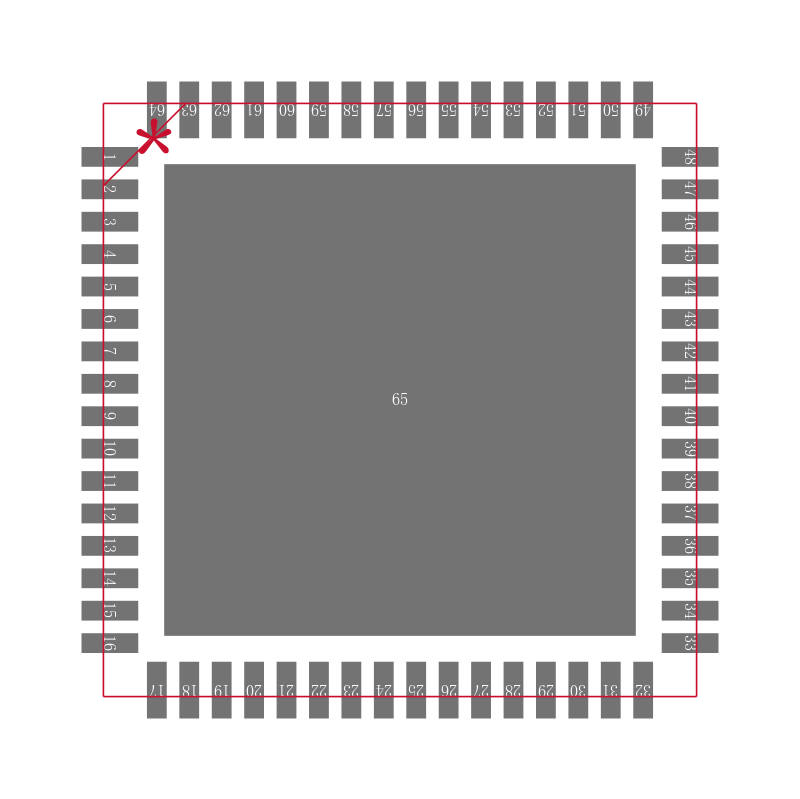

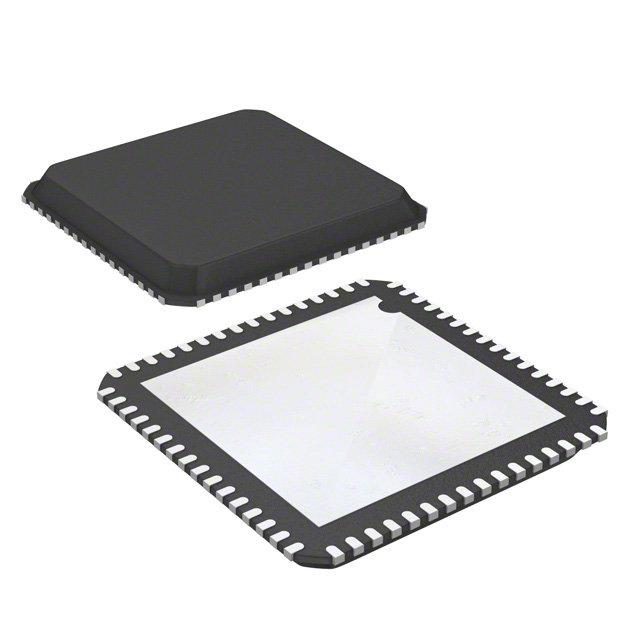

封装 VQFN-64
宽度 9 mm
封装 VQFN-64
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 3A001A5A5
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADS5485IRGCT TI 德州仪器 | 当前型号 | 当前型号 |
ADS5484IRGCT 德州仪器 | 完全替代 | ADS5485IRGCT和ADS5484IRGCT的区别 |
ADS5484IRGCRG4 德州仪器 | 完全替代 | ADS5485IRGCT和ADS5484IRGCRG4的区别 |
ADS5483IRGCT 德州仪器 | 类似代替 | ADS5485IRGCT和ADS5483IRGCT的区别 |
