ADS5273IPFP

八通道、12 位、70MSPS 模数转换器 ADC 80-HTQFP -40 to 85

The ADS5273 is a high-performance, CMOS, 70MSPS, 8-channel analog-to-digital converter ADC. An internal reference is provided, simplifying system design requirements. Low power consumption allows for the highest of system integration densities. Serial LVDS low-voltage differential signaling outputs reduce the number of interface lines and package size.

An integrated phase lock loop PLL multiplies the incoming ADC sampling clock by a factor of 12. This high-frequency LVDS clock is used in the data serialization and transmission process. The word output of each internal ADC is serialized and transmitted either MSB or LSB first. In addition to the eight data outputs, a bit clock and a word clock are also transmitted. The bit clock is at 6x the speed of the sampling clock, whereas the word clock is at the same speed of the sampling clock.

The ADS5273 provides an internal reference, or can optionally be driven with an external reference. Best performance is achieved through the internal reference mode.

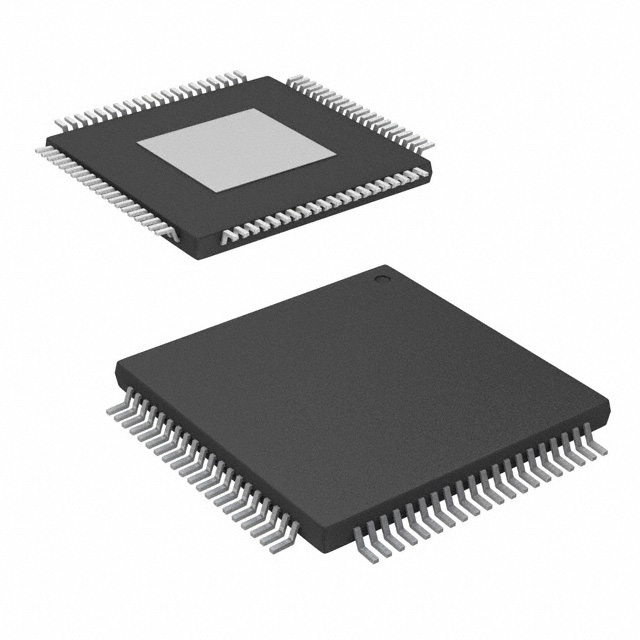

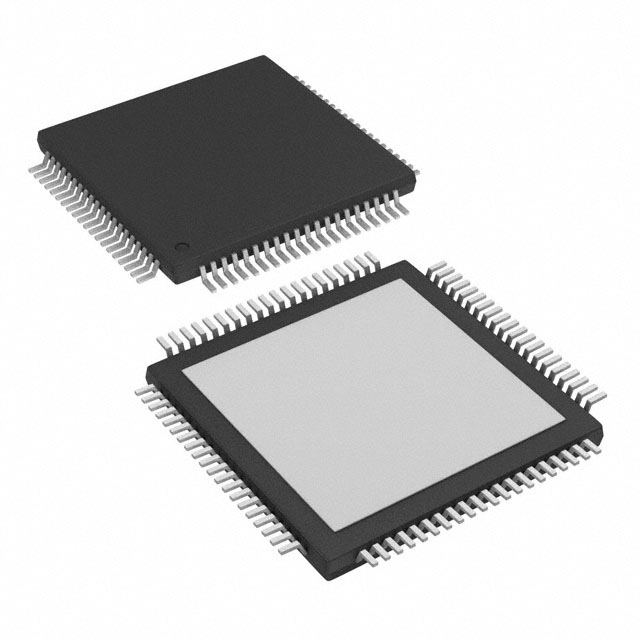

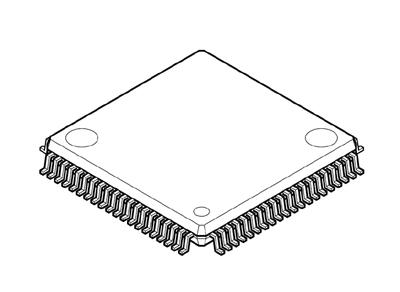

The device is available in a PowerPAD TQFP-80 package and is specified over a -40°C to +85°C operating range.
