14位, 170 MSPS / 210 MSPS / 250 MSPS , 1.8 V模拟数字转换器( ADC ) 14-Bit, 170 MSPS/210 MSPS/250 MSPS, 1.8 V Analog-to-Digital Converter ADC

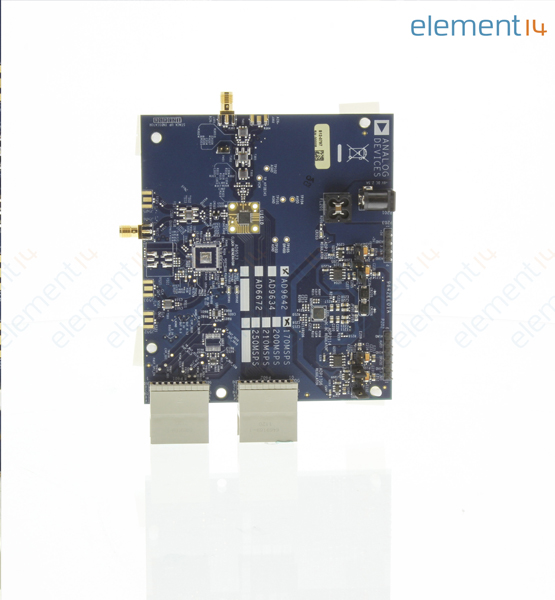

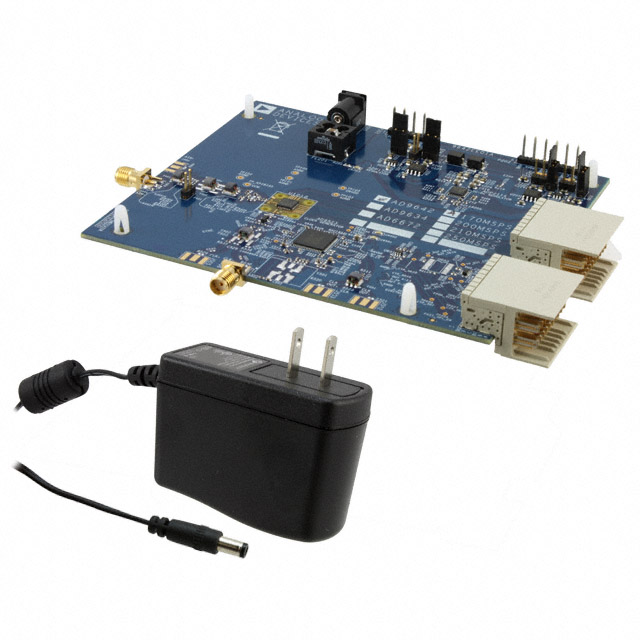

The is an evaluation board for AD9642 device. The AD9642 is a 14bit analog to Digital converter ADC with sampling speeds of 250MSPS. The AD9642 is designed to support communications applications where low cost, small size, wide bandwidth and versatility are desired. The ADC core features a multistage, differential pipelined architecture with integrated output error correction logic. The ADC features wide bandwidth inputs that can support a variety of user-selectable input ranges. An integrated voltage reference eases design considerations. A duty cycle stabilizer DCS is provided to compensate for variations in the ADC clock duty cycle, allowing the converter to maintain excellent performance. The ADC output data is routed directly to the external 14bit LVDS output port. Flexible power down options allow significant power savings, when desired. Programming for setup and control is accomplished using a 3 wire SPI-compatible serial interface.
位数 14
采样率 170 Msps
分辨率Bits 14.0
输入电容 2.50 pF
输入阻抗 20.0 kΩ
产品生命周期 Active
包装方式 Bulk
制造应用 射频通信, Communications & Networking, Wireless, Hobby & Education, Communications & Networking, RF Communications, Wireless, Hobby & Education, 业余爱好与教育用, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
ECCN代码 EAR99
