8 位、双路 1.0GSPS 或单路 2.0GSPS 模数转换器 ADC 128-HLQFP -40 to 85
If you require your analog signals to be converted into digital data then this ADC from Texas Instruments is perfect. This device"s digital interface is parallel|lvds. It has a differential input signal. This device is based on 2-Step Folding architecture. Its maximum power dissipation is 1600 mW. This ADC has a resolution of 8bit. This ADC has an input voltage of 0.65 Vp-p/0.87Vp-p. This ADC has a temperature range of -40 °C to 85 °C.
电源电压DC 1.80V min
供电电流 660 mA
电路数 2
通道数 2
位数 8
耗散功率 1600 W
采样率 1.00 GHz
功耗 1.60 W
模数转换数ADC 2
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1600 mW
输入通道数 2
电源电压Max 2 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 128

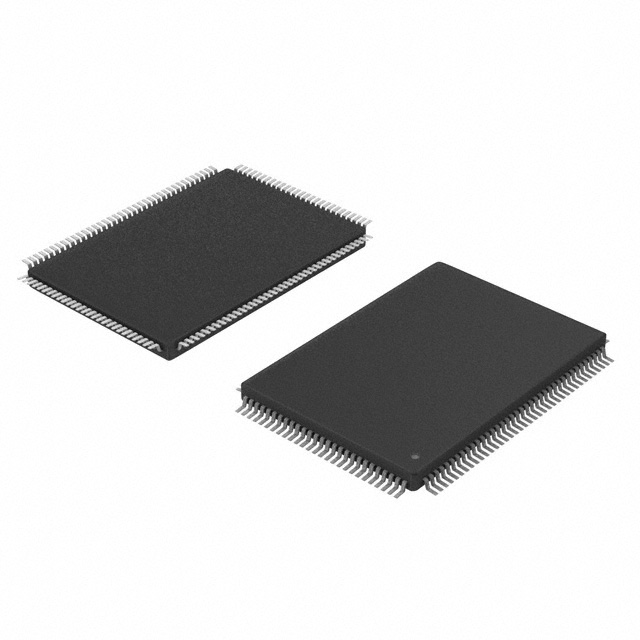

封装 LQFP-EP-128
长度 20 mm
宽度 20 mm
高度 1.4 mm
封装 LQFP-EP-128
产品生命周期 Not Recommended for New Designs
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 3A001A5A1
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADC08D1000CIYB/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
ADC08D1000CIYB 德州仪器 | 完全替代 | ADC08D1000CIYB/NOPB和ADC08D1000CIYB的区别 |
