ADC12D1000CIUT/NOPB

12 位、双路 1.0GSPS 或单路 2.0GSPS 模数转换器 ADC 292-BGA -40 to 85

The 12-bit, 2.0/3.2 GSPS ADC12D1x00 device is the latest advance in ’s Ultra High-Speed ADC family and builds upon the features, architecture, and functionality of the 10-bit GHz family of ADCs.

The ADC12D1x00 provides a flexible LVDS interface which has multiple SPI programmable options to facilitate board design and FPGA/ASIC data capture. The LVDS outputs are compatible with IEEE 1596.3-1996 and support programmable common-mode voltage.

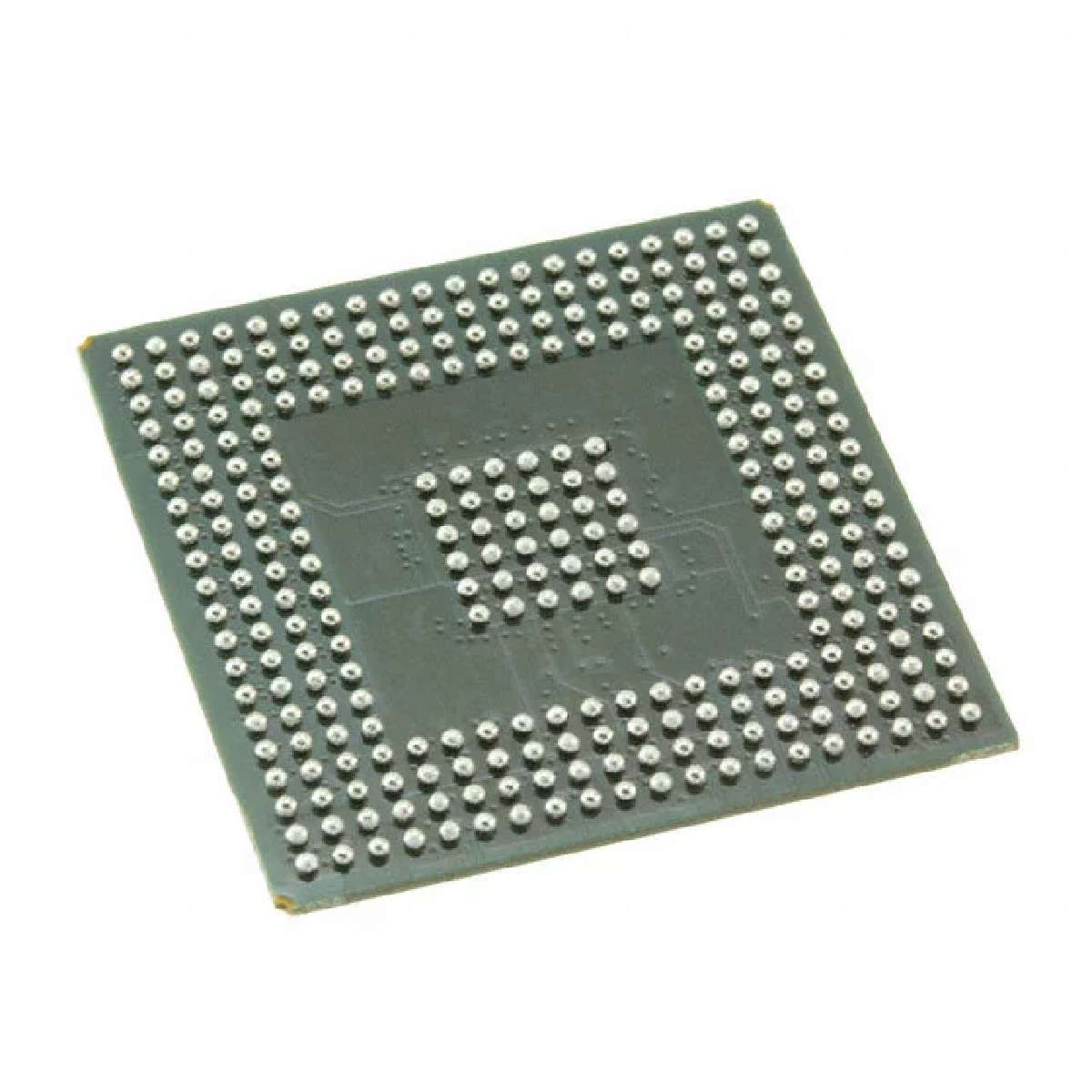

The ADC12D1x00 is packaged in a leaded or lead-free 292-pin thermally enhanced BGA package over the rated industrial temperature range of –40°C to 85°C.
