AD9625BBPZRL-2.0

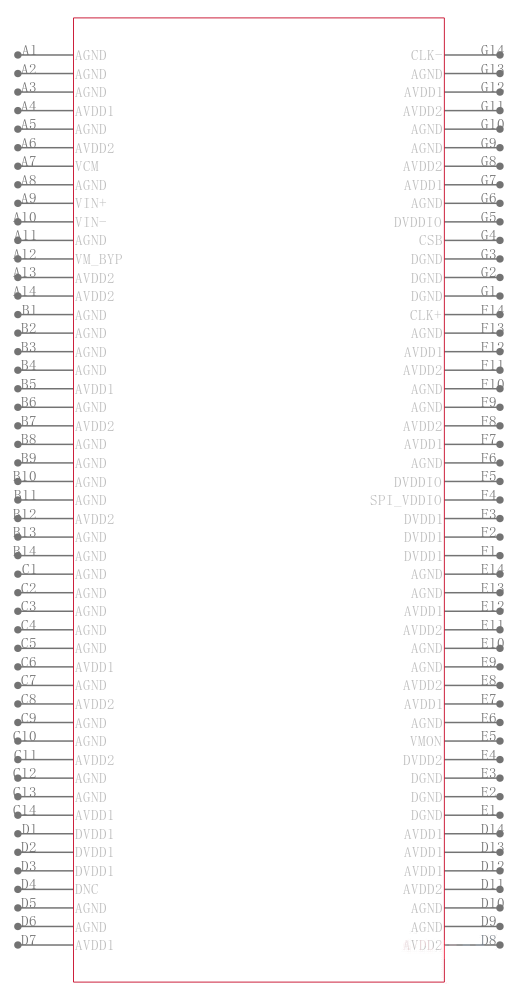

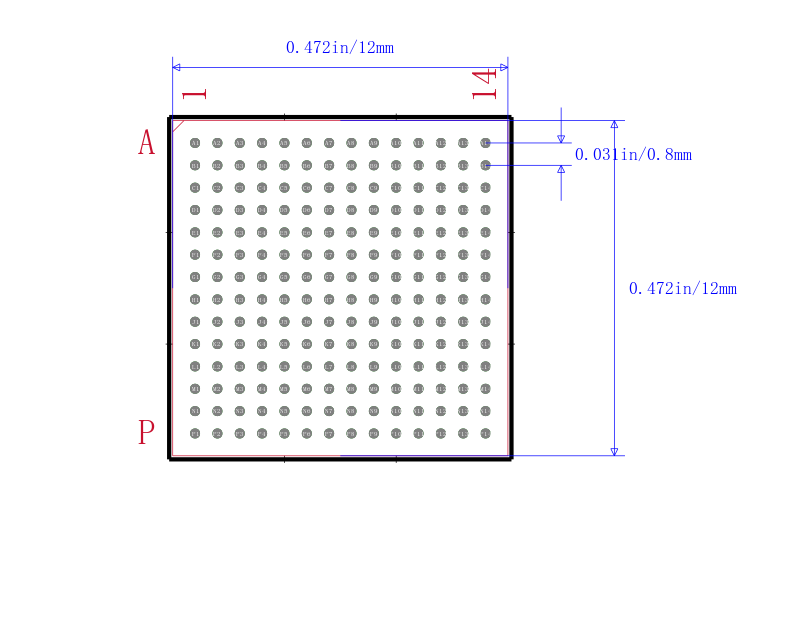

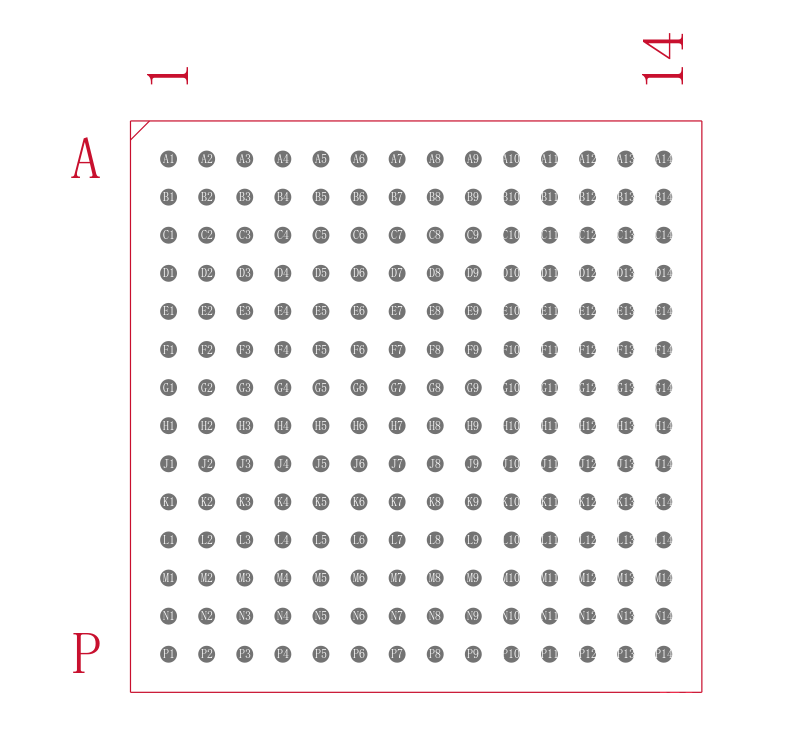

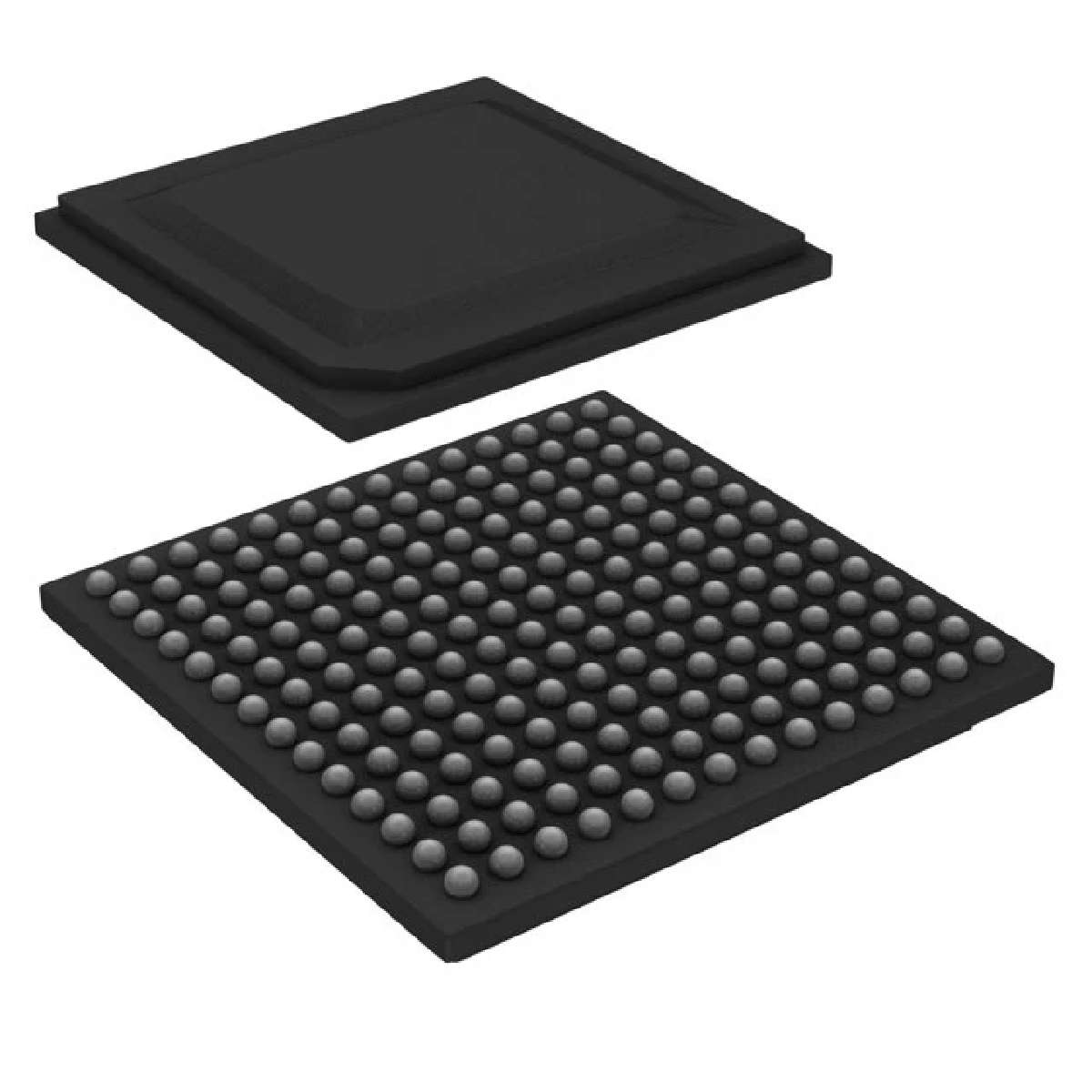

ANALOG DEVICES AD9625BBPZRL-2.0 Analog to Digital Converter, 12Bit, 2GSPS, 2.4V, 2.6V, BGA

GENERAL DESCRIPTION

The AD9625 is a 12-bit monolithic sampling analog-to-digital converter ADC that operates at conversion rates of up to 2.0 giga samples per second GSPS. This product is designed for sampling wide bandwidth analog signals up to the second Nyquist zone. The combination of wide input bandwidth, high sampling rate, and excellent linearity of the AD9625 is ideally suited for spectrum analyzers, data acquisition systems, and a wide assortment of military electronics applications, such as radar and jamming/antijamming measures.

FEATURES

12-bit 2.0 GSPS ADC, no missing codes

SFDR = 80 dBc, AIN up to 1 GHz at −1 dBFS, 2.0 GSPS

SFDR = 76 dBc, AIN up to 1.8 GHz at −1 dBFS, 2.0 GSPS

SNR = 59 dBFS, AIN up to 1 GHz at −1 dBFS, 2.0 GSPS

SNR = 58 dBFS, AIN up to 1.8 GHz at −1 dBFS, 2.0 GSPS

Noise floor = −149.5 dBFS/Hz at 2.0 GSPS

Power consumption: 3.5 W at 2.0 GSPS

Differential analog input: 1.1 V p-p

Differential clock input

High speed 6- or 8-lane JESD204B serial output Subclass 1: 5.0 Gbps at 2.0 GSPS

Two independent decimate by 8 or decimate by 16 filters  with 10-bit NCOs

Supply voltages: 1.3 V, 2.5 V

Serial port control

  Flexible digital output modes

  Built-in selectable digital test patterns
