AD7938BCP-6

8通道， 625 kSPS时，用音序器，12位并行ADC 8-Channel, 625 kSPS, 12-Bit Parallel ADCs with a Sequencer

GENERAL DESCRIPTION

The AD7938-6 is a 12-bit high speed,low power,successive approximation SAR ADC.The partoperates froma single 2.7 V to5.25 V power supplyand features throughputrates up to 625 kSPS.The partcontains a low noise, wide bandwidth, differentialtrack-and-hold amplifierthatcan handle input frequencies upto 50 MHz.

FEATURES

Fast throughput rate:625kSPS

Specified for VDDof 2.7 V to 5.25 V

Low power

  3.6 mW maxat 625 kSPSwith 3 V supplies

  7.5 mW maxat 625 kSPSwith 5 V supplies

8 analog input channels with a sequencer

Software configurable analoginputs

  8-channel single-ended inputs

  4-channel fully differential inputs

  4-channel pseudo-differential inputs

  7-channel pseudo-differential inputs

Accurate on-chip 2.5 V reference

±0.2% max@ 25°C, 25 ppm/°C max

70 dB SINAD at50 kHz input frequency

Nopipeline delays

High speed parallel interface—word/byte modes

Full shutdown mode: 2 µA max

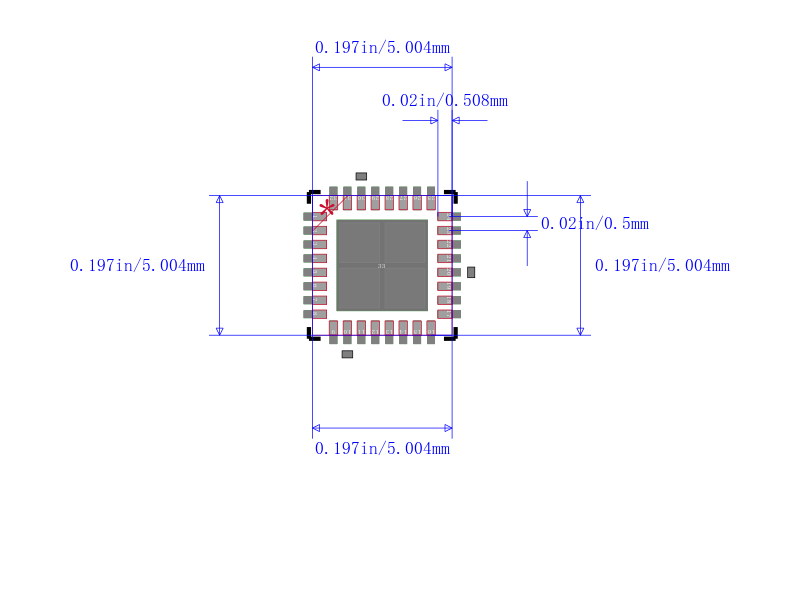

32-leadLFCSP and TQFP package
