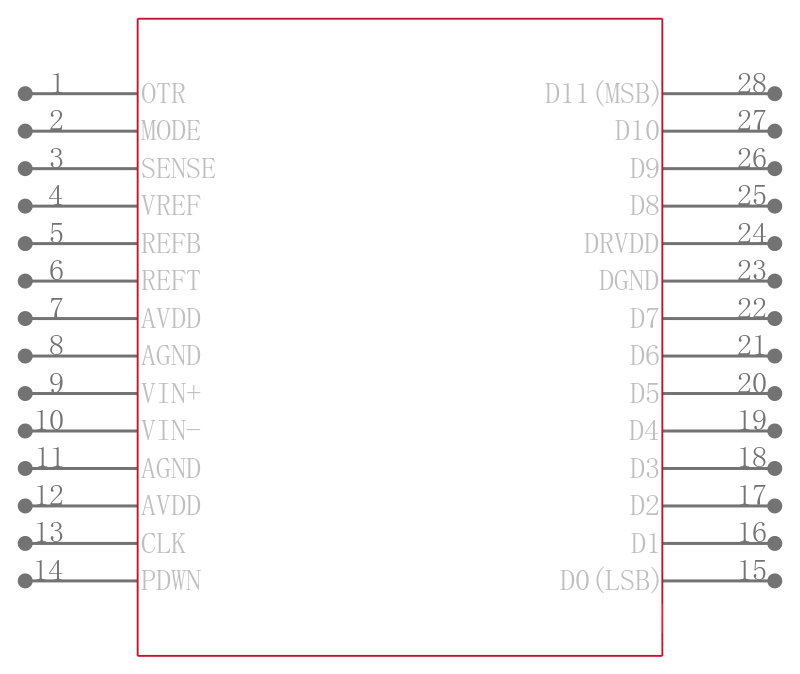

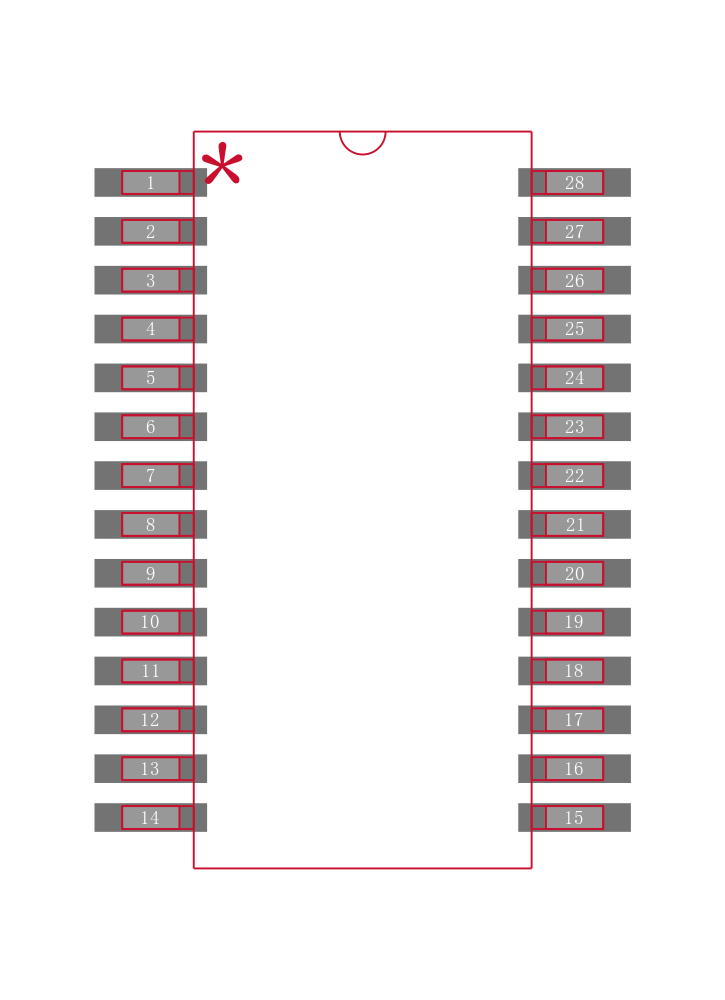

AD9236BRU-80

12位， 80 MSPS ， 3V A / D转换器 12-Bit, 80 MSPS, 3V A/D Converter

GENERAL DESCRIPTION

The AD9236 is a monolithic, single 3 V supply, 12-bit, 80 MSPS analog-to-digital converter featuring a high performance sample and-hold amplifier SHA and voltage reference. The AD9236 uses a multistage differential pipelined architecture with output error correction logic to provide 12-bit accuracy at 80 MSPS and guarantee no missing codes over the full operating temperature range.

FEATURES

Single 3 V supply operation 2.7 V to 3.6 V

SNR = 70.4 dBc to Nyquist

SFDR = 87.8 dBc to Nyquist

Low power: 366 mW

Differential input with 500 MHz bandwidth

On-chip reference and sample-and-hold

DNL = ±0.4 LSB

Flexible analog input: 1 V p-p to 2 V p-p range

Offset binary or twos complement data format

Clock duty cycle stabilizer

APPLICATIONS

High end medical imaging equipment

IF sampling in communications receivers WCDMA, CDMA-One, CDMA-2000

Battery-powered instruments

Hand-held scopemeters

Low cost digital oscilloscopes

DTV subsystems
