AD1877JR

单电源， 16位立体声ADC Single-Supply 16-Bit Stereo ADC

PRODUCT OVERVIEW

The AD1877 is a stereo, 16-bit oversampling ADC based on Sigma Delta ∑∆ technology intended primarily for digital audio bandwidth applications requiring a single 5 V power supply. Each single-ended channel consists of a fourth-order one-bit noise shaping modulator and a digital decimation filter. An on chip voltage reference, stable over temperature and time, defines the full-scale range for both channels. Digital output data from both channels are time-multiplexed to a single, flexible serial interface. The AD1877 accepts a 256 × FS or a 384 × FS input clock FS is the sampling frequency and operates in both serial port “master” and “slave” modes. In slave mode, all clocks must be externally derived from a common source.

FEATURES

  Single 5 V Power Supply

  Single-Ended Dual-Channel Analog Inputs

  92 dB Typ Dynamic Range

  90 dB Typ S/THD+N

  0.006 dB Decimator Passband Ripple

  Fourth-Order, 64-Times Oversampling ΣΔ Modulator

  Three-Stage, Linear-Phase Decimator

  256 X FS or 384 X FS Input Clock

  Less than 100 μW Typ Power-Down Mode

  Input Overrange Indication

  On-Chip Voltage Reference

  Flexible Serial Output Interface

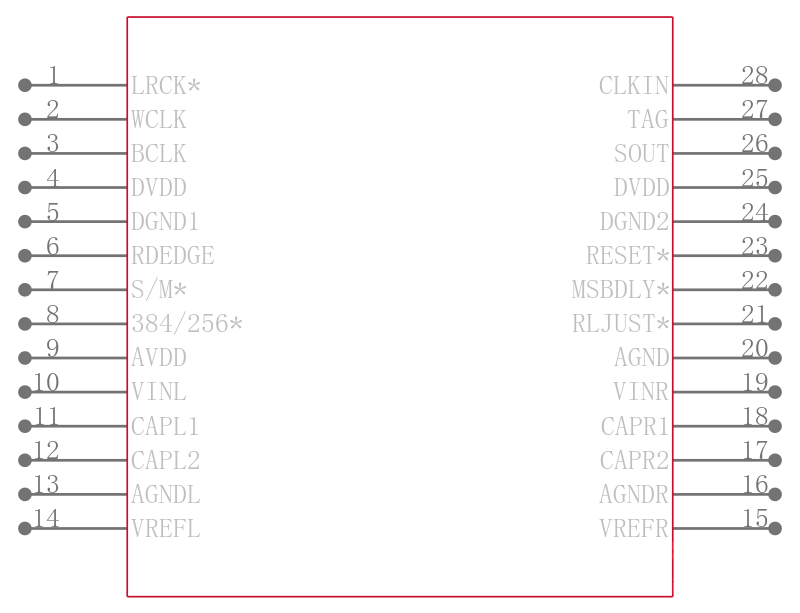

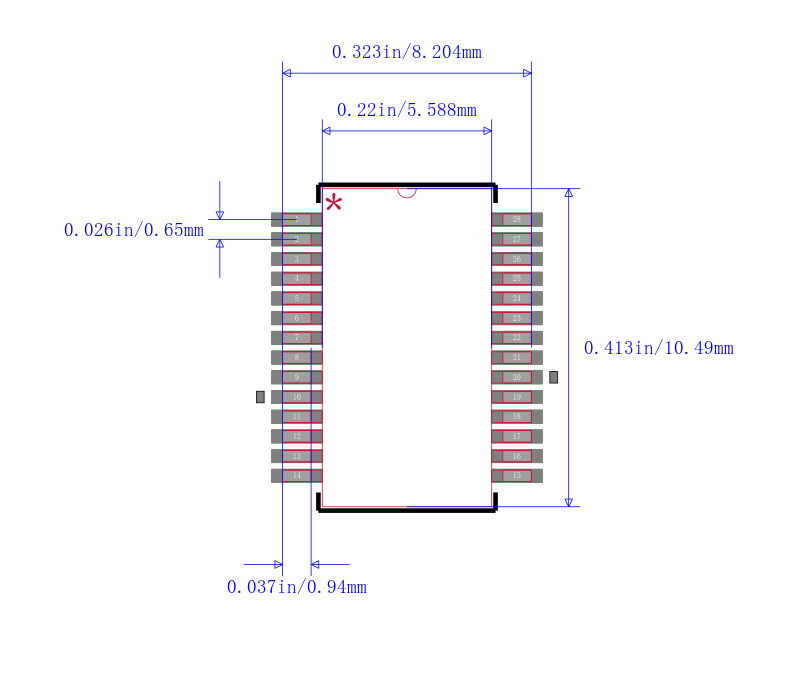

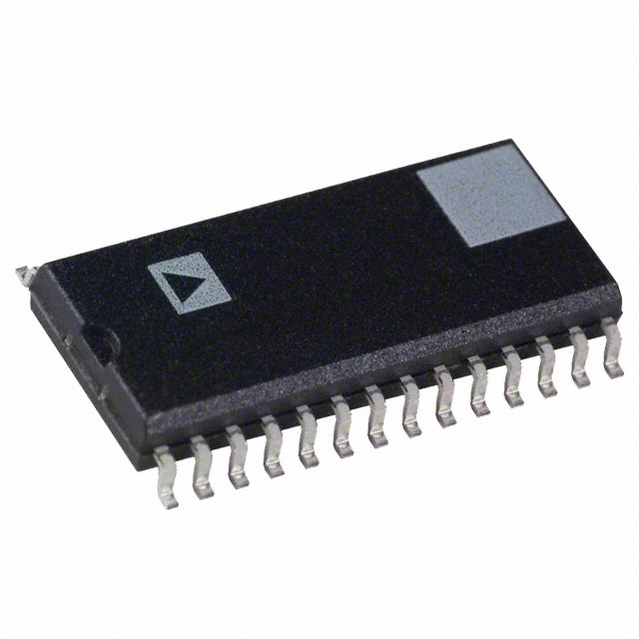

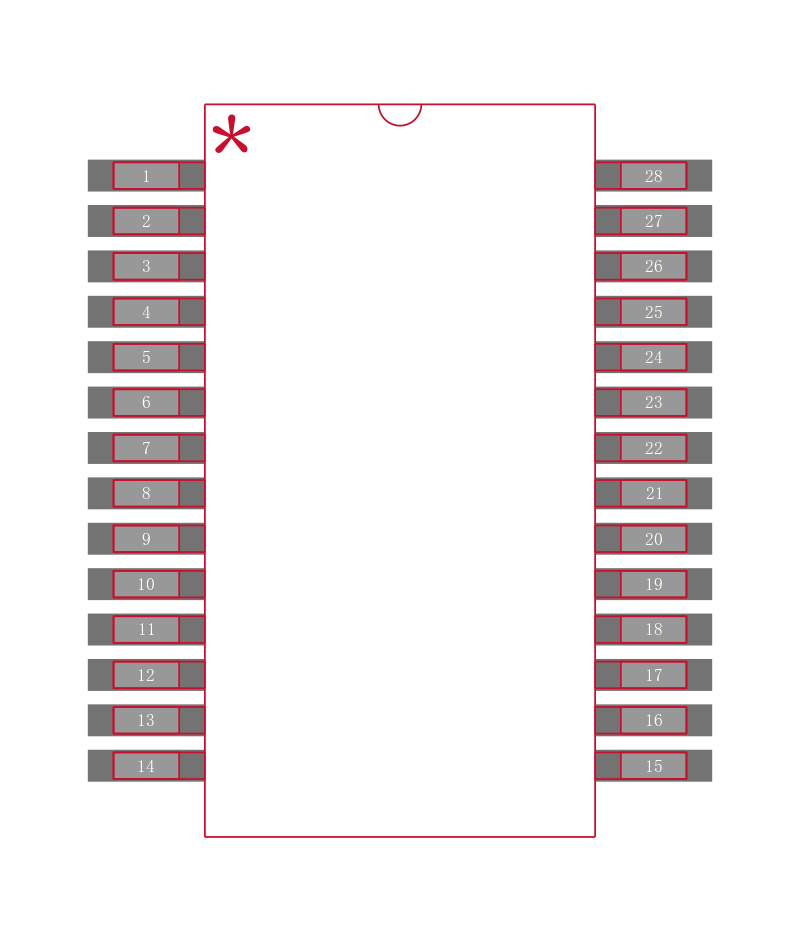

  28-Lead SOIC Package

APPLICATIONS

  Consumer Digital Audio Receivers

  Digital Audio Recorders, Including Portables CD-R, DCC, MD and DAT

  Multimedia and Consumer Electronic Equipment

  Sampling Music Synthesizers

  Digital Karaoke Systems
