超低噪声, 150毫安CMOS线性稳压器 Ultralow Noise, 150 mA CMOS Linear Regulator
PMIC - 稳压器 - 线性 正 固定 1 输出 150mA 4-WLCSP(0.76x0.76)
得捷:
IC REG LINEAR 2.6V 150MA 4WLCSP
立创商城:
ADP150ACBZ-2.6-R7
艾睿:
Make a theoretical system actual by providing stable voltages with this LDO ADP150ACBZ-2.6-R7 linear regulator from Analog Devices. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.01@10mA|0.105@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.2 V that does not exceed 5.5 V. With a fixed output that has a voltage of 2.6 V, this is power management at its best. By operating at a load regulation of 0.002%/mATyp and line regulation of 0.05%/V you can provide a constant voltage at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. The maximum dropout voltage is 0.035@10mA|0.16@150mA V. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. Its polarity is positive.
Chip1Stop:
LDO Regulator Pos 2.6V 0.15A 4-Pin WLCSP T/R
Verical:
LDO Regulator Pos 2.6V 0.15A 4-Pin WLCSP T/R
输出接口数 1
输出电压 2.6 V
输出电流 150 mA
供电电流 10.0 µA
跌落电压 0.01V @10mA,0.105V @150mA
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±1 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 4

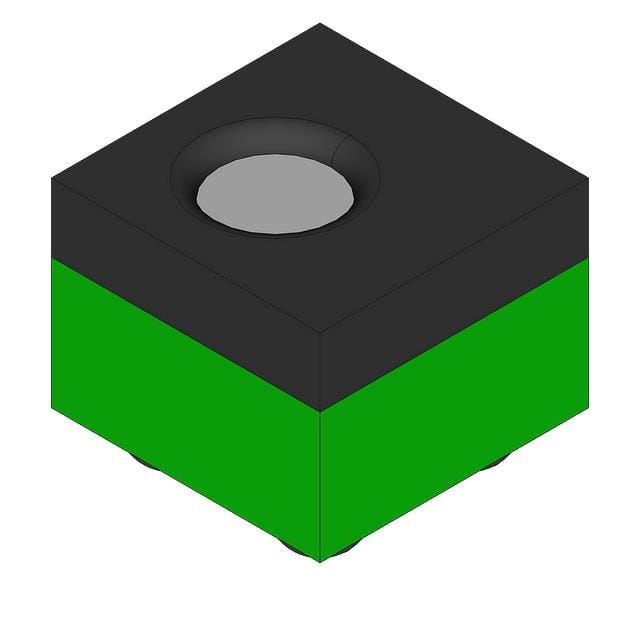

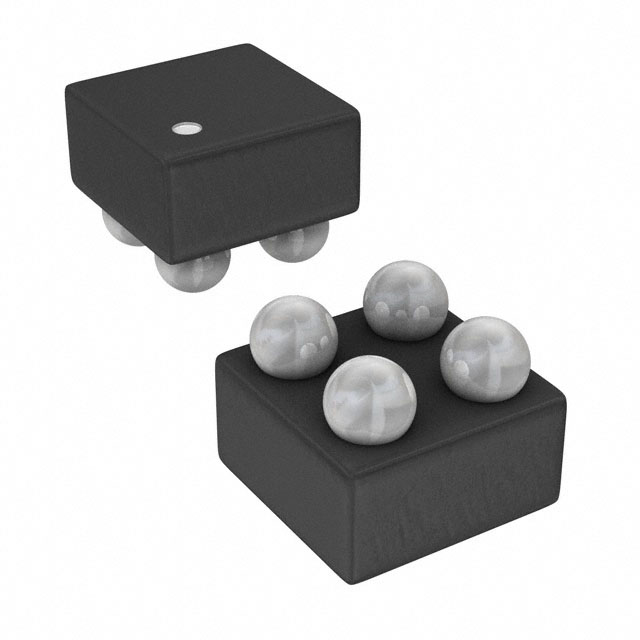

封装 WLCSP-4
长度 0.76 mm
宽度 0.76 mm
高度 0.4 mm
封装 WLCSP-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Aerospace and Defense, Security and Surveillance, Scanning Equipment, Radar
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
