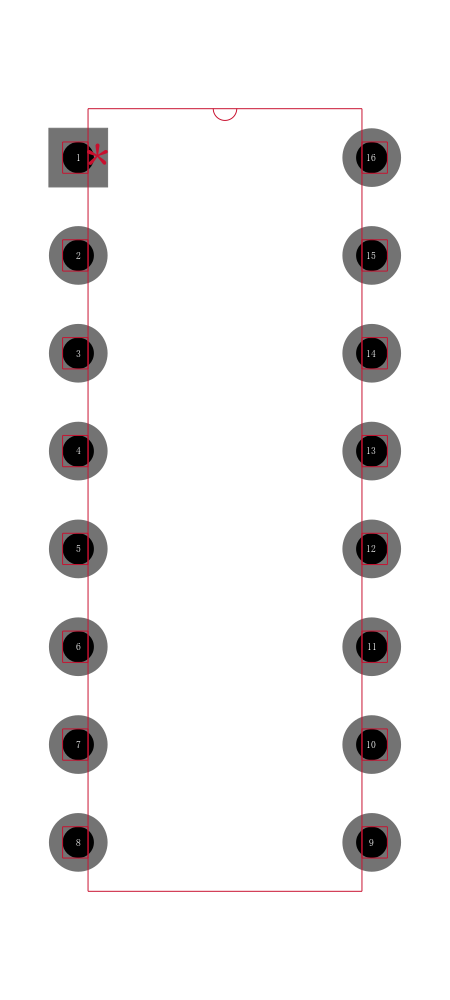

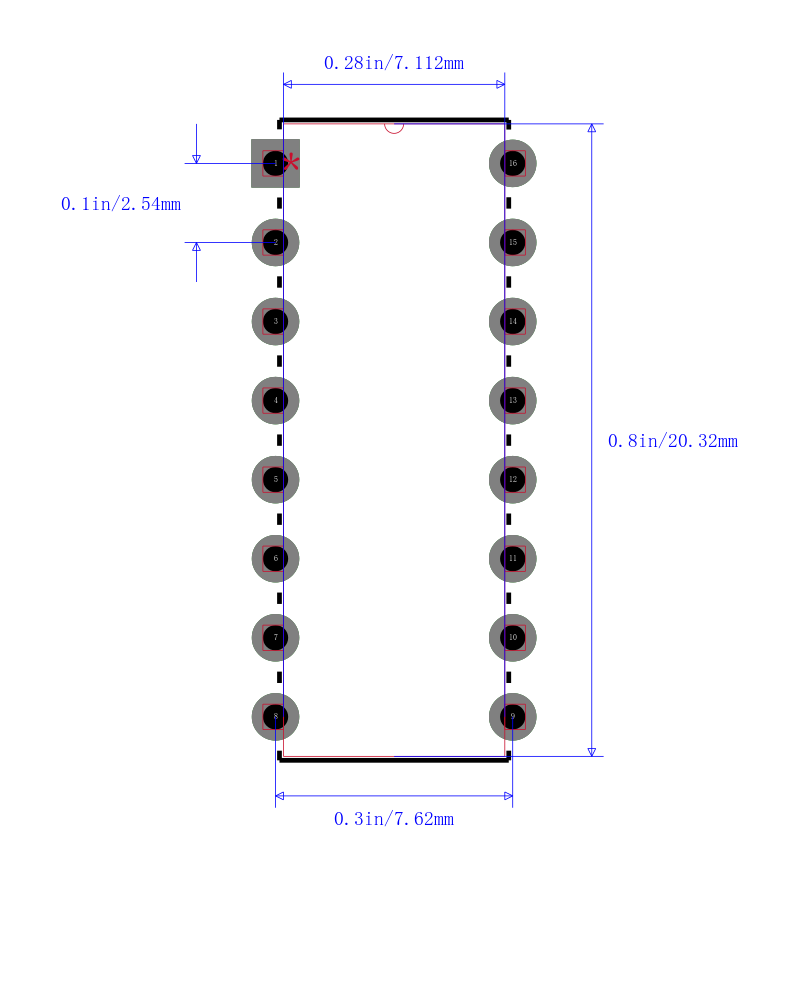

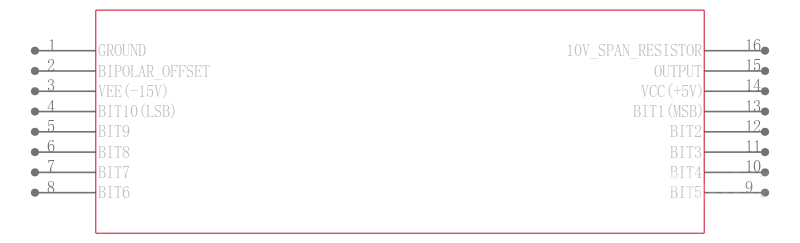

AD561KN

低成本10位单片D / A转换器 Low Cost 10-Bit Monolithic D/A Converter

PRODUCT DESCRIPTION

The AD561 is an integrated circuit 10-bit digital-to-analog converter combined with a high stability voltage reference fabricated on a single monolithic chip. Using ten precision high speed current-steering switches, a control amplifier, voltage reference, and laser-trimmed thin-film SiCr resistor network, the device produces a fast, accurate analog output current. Laser trimmed output application resistors are also included to facilitate accurate, stable current-to-voltage conversion; they are trimmed to 0.1% accuracy, thus eliminating external trimmers in many situations.

FEATURES

  Complete Current Output Converter

  High Stability Buried Zener Reference

  Laser Trimmed to High Accuracy 1/4 LSB Max Error, AD561K, T

  Trimmed Output Application Resistors for 0 V to +10 V, 65 V Ranges

  Fast Settling – 250 ns to 1/2 LSB

  Guaranteed Monotonicity Over Full Operating Temperature Range

  TTL/DTL and CMOS Compatible Positive True Logic

  Single Chip Monolithic Construction

  Available in Chip Form

  MlL-STD-883-Compliant Versions Available
