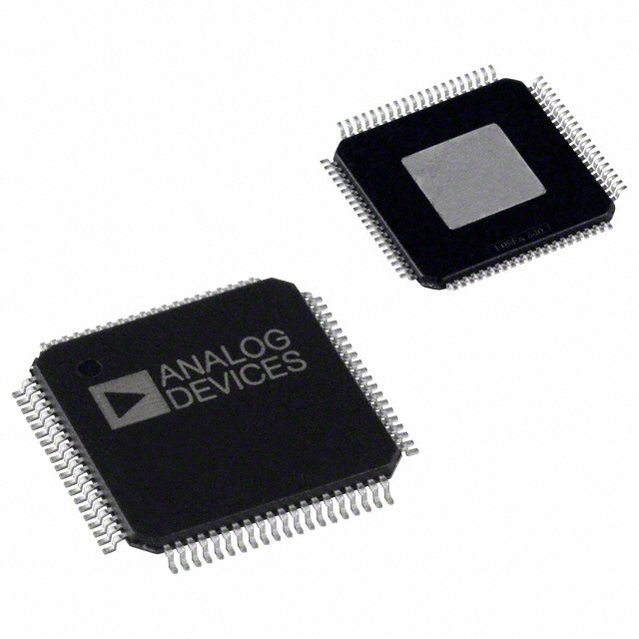

AD9777BSV

16位， 160 MSPS 2X / 4X / 8X插双通道TxDAC + D / A转换器 16-Bit, 160 MSPS 2X/4X/8X Interpolating Dual TxDAC+ D/A Converter

GENERAL DESCRIPTION

The AD9777 is the 16-bit member of the AD977x pin compatible, high performance, programmable 2×/4×/8× interpolating TxDAC+ family. The AD977x family features a serial port interface SPI that provides a high level of programmability, thus allowing for enhanced system level options. These options include selectable 2×/4×/8× interpolation filters; fS/2, fS/4, or fS/8 digital quadrature modulation with image rejection; a direct IF mode; programmable channel gain

and offset control; programmable internal clock divider; straight binary or twos complement data interface; and a single port or dual-port data interface.
