12通道,8位TrimDACs与功耗关断模式 12 Channel, 8-Bit TrimDACs with Power Shutdown
GENERAL DESCRIPTION

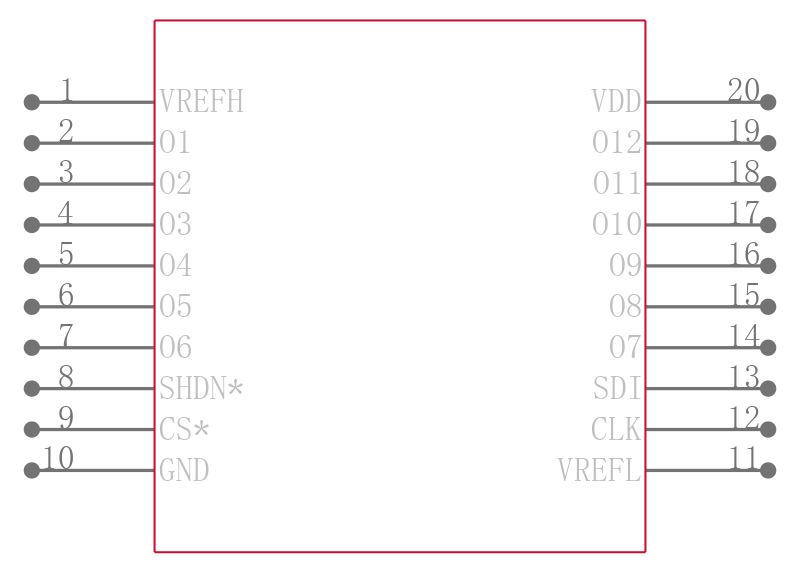

The 12-channel AD8802/AD8804 provides independent digitally controllable voltage outputs in a compact 20-lead package. This potentiometer divider TrimDAC® allows replacement of the mechanical trimmer function in new designs. The AD8802/AD8804 is ideal for dc voltage adjustment applications.
Easily programmed by serial interfaced microcontroller ports, the AD8802 with its midscale preset is ideal for potentiometer replacement where adjustments start at a nominal value. Applications such as gain control of video amplifiers, voltage controlled frequencies and bandwidths in video equipment, geometric correction and automatic adjustment in CRT computer graphic displays are a few of the many applications ideally suited for these parts. The AD8804 provides independent control of both the top and bottom end of the potentiometer divider allowing a separate zero-scale voltage setting determined by the VREFL pin. This is helpful for maximizing the resolution of devices with a limited allowable voltage control range.
FEATURES
Low Cost
Replaces 12 Potentiometers
Individually Programmable Outputs
3-Wire SPI Compatible Serial Input
Power Shutdown Midscale Preset, AD8802
Separate VREFL Range Setting, AD8804
+3 V to +5 V Single Supply Operation
APPLICATIONS
Automatic Adjustment
Trimmer Replacement
Video and Audio Equipment Gain and Offset Adjustment
Portable and Battery Operated Equipment
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8804ARU ADI 亚德诺 | 当前型号 | 当前型号 |
AD8804ARUZ 亚德诺 | 完全替代 | AD8804ARU和AD8804ARUZ的区别 |
AD8804AR 亚德诺 | 完全替代 | AD8804ARU和AD8804AR的区别 |
AD8804ARUZ-REEL 亚德诺 | 完全替代 | AD8804ARU和AD8804ARUZ-REEL的区别 |
