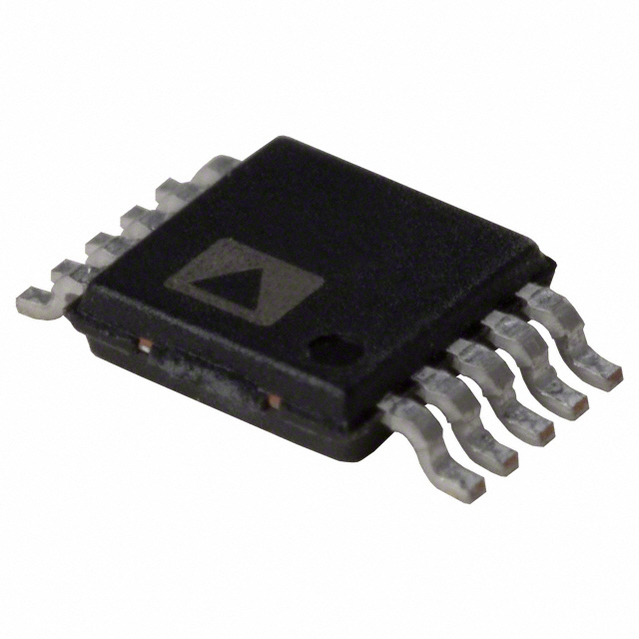

AD5305ARM

2.5 V至5.5 V ， 500微安， 2线接口四路电压输出， 8位/ 10位/ 12位DAC 2.5 V to 5.5 V, 500 uA, 2-Wire Interface Quad Voltage Output, 8-/10-/12-Bit DACs

GENERAL DESCRIPTION

The AD5305/AD5315/AD5325 are quad 8-, 10-, and 12-bit buffered voltage output DACs in a 10-lead MSOP that operate from a single 2.5 V to 5.5 V supply, consuming 500 µA at 3 V. Their on-chip output amplifiers allow rail-to-rail output swing with a slew rate of 0.7 V/µs. A 2-wire serial interface, which operates at clock rates up to 400 kHz, is used. This interface is SMBus compatible at VDD < 3.6 V. Multiple devices can be placed on the same bus.

艾睿:
DAC 4-CH Resistor-String 8-bit 10-Pin MSOP

Chip1Stop:
DAC 4-CH Resistor-String 8-bit 10-Pin MSOP

罗切斯特:
AD5305 - 2.5V to 5.5V, 500uA, 2-WIRE Interface Quad Voltage Output, 8-Bit DAC
