LDO(低压降)线性电压调节器,高达 1.65V 输出,Analog Devices### LDO(低压降)线性电压调节器 - Analog Devices低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,高达 1.65V 输出,Analog Devices
Analog Devices 低压降(LDO)线性调节器提供快速瞬态响应、极佳的线路和负载调节,并且具有宽输入电压范围。
### LDO(低压降)线性电压调节器 - Analog Devices
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 1.65V 300MA 4WLCSP
欧时:
LDO(低压降)线性稳压器,高达 1.65V 输出,Analog DevicesAnalog Devices 低压降(LDO)线性调节器提供快速瞬态响应、极佳的线路和负载调节,并且具有宽输入电压范围。### LDO(低压降)线性电压调节器 - Analog Devices低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
贸泽:
Linear Voltage Regulators 300mA LDO 1.65Vout
艾睿:
Use the LDO ADP172ACBZ-1.65-R7 linear regulator from Analog Devices to maintain a constant output voltage. Its typical dropout voltage at current is 0.05@300mA V. It has an overall accuracy of 1.5/-2 %. This voltage regulation device&s;s single output can produce a current up to 0.3 A. By only needing an input voltage of 1.6 V with a maximum of 3.6 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.65 V, this is power management at its best. By operating at a load regulation of 0.001%/mATyp and line regulation of 0.25%/V you can provide a constant voltage at your output. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. Its polarity is positive.
Verical:
LDO Regulator Pos 1.65V 0.3A 4-Pin WLCSP T/R
Newark:
# ANALOG DEVICES ADP172ACBZ-1.65-R7 Fixed LDO Voltage Regulator, 1.6V to 3.6V In, 50mV Dropout, 1.65V/300mA Out, WLCSP-4
DeviceMart:
IC REG LDO 1.65V .3A 4WLCSP
输出接口数 1
输出电压 1.65 V
输出电流 300 mA
供电电流 60µA ~ 0.26µA
针脚数 4
静态电流 170 µA
跌落电压 50 mV
输入电压Max 3.6 V
输入电压Min 1.6 V
输出电压Min 1.65 V
输出电流Max 300 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 3.6 V
安装方式 Surface Mount
引脚数 4

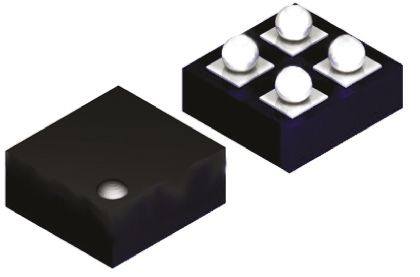

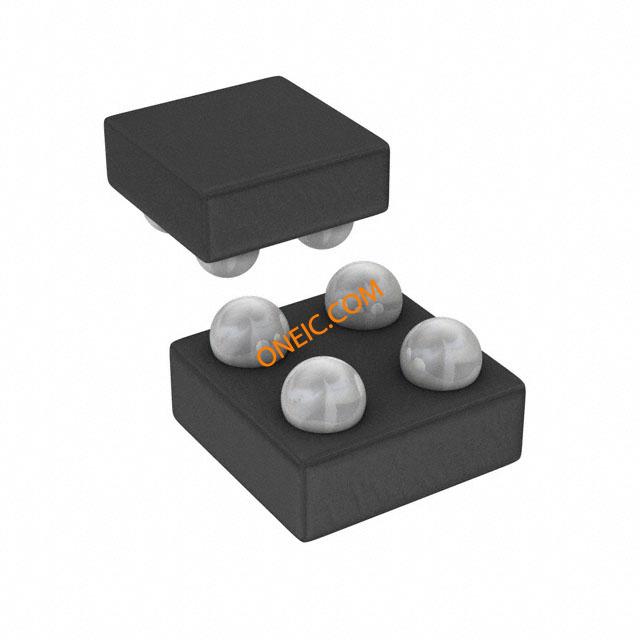

封装 WLCSP-4
长度 1.07 mm
宽度 0.99 mm
高度 0.37 mm
封装 WLCSP-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
