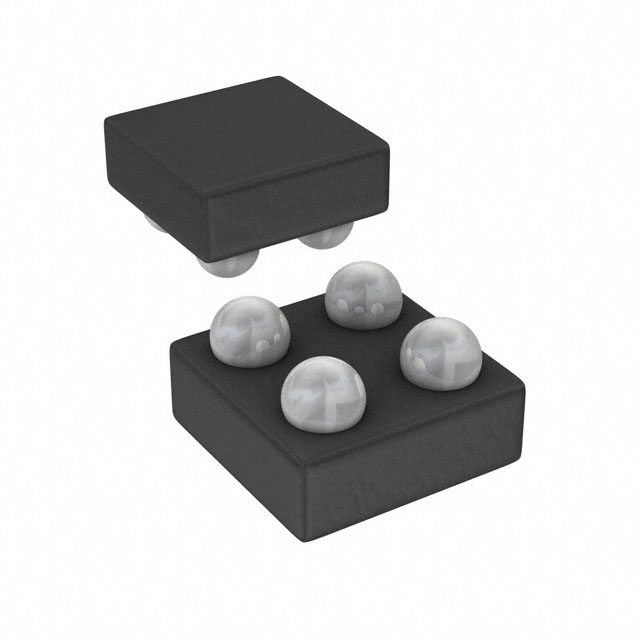

300毫安,低静态电流CMOS线性稳压器 300 mA, Low Quiescent Current CMOS Linear Regulator
PMIC - 稳压器 - 线性 正 固定 输出 300mA 4-WLCSP(0.95x1.03)
得捷:
IC REG LINEAR 1.5V 300MA 4WLCSP
立创商城:
ADP172ACBZ-1.5-R7
艾睿:
This LDO ADP172ACBZ-1.5-R7 linear regulator developed by Analog Devices keeps the power stable! It has an overall accuracy of 1.5/-2 %. Its typical dropout voltage at current is 0.05@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 1.6 V that does not exceed 3.6 V. With a fixed output that has a voltage of 1.5 V, this is power management at its best. Users like the load regulation of 0.001%/mATyp and line regulation of 0.25%/V. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.5V 0.3A 4-Pin WLCSP T/R
DeviceMart:
IC REG LDO 1.5V .3A 4WLCSP
输出接口数 1
输出电压 1.5 V
输出电流 300 mA
供电电流 23.0 µA
静态电流 0.023 mA
跌落电压 0.05V @300mA
输入电压Max 3.6 V
输入电压Min 1.6 V
输出电流Max 0.3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 1.6V ~ 3.6V
安装方式 Surface Mount
引脚数 4
封装 UFBGA-4
宽度 0.95 mm
封装 UFBGA-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP172ACBZ-1.5-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP121-ACBZ15R7 亚德诺 | 类似代替 | ADP172ACBZ-1.5-R7和ADP121-ACBZ15R7的区别 |
ADP160ACBZ-1.5-R7 亚德诺 | 类似代替 | ADP172ACBZ-1.5-R7和ADP160ACBZ-1.5-R7的区别 |
ADP172ACBZ-1.8-R7 亚德诺 | 功能相似 | ADP172ACBZ-1.5-R7和ADP172ACBZ-1.8-R7的区别 |
