超低噪声200 mA时, CMOS线性稳压器 Ultralow Noise, 200 mA, CMOS Linear Regulator

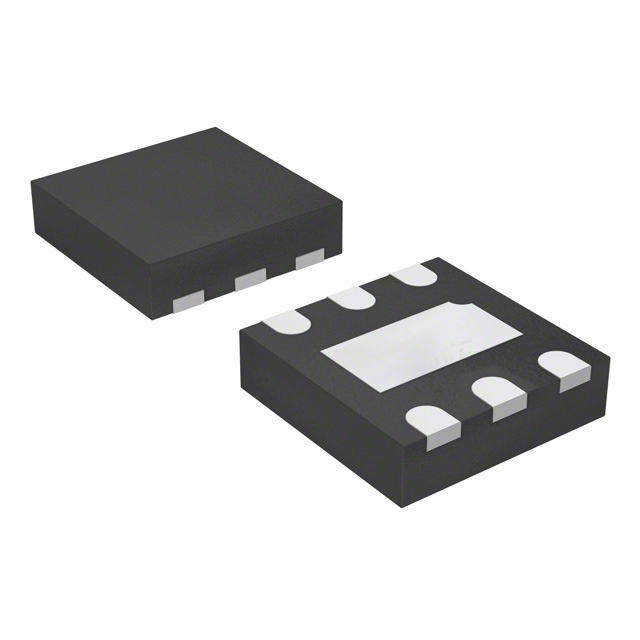

PMIC - 稳压器 - 线性 正 固定 输出 200mA 6-LFCSP-UD(2x2)
得捷:
ULTRALOW NOISE, 200MA, CMOS LINE
立创商城:
ADP151ACPZ-1.8-R7
艾睿:
Use this LDO ADP151ACPZ-1.8-R7 linear regulator from Analog Devices to vary your voltage levels to your desired level. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.14@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.2 V and no higher than 5.5 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. By operating at a load regulation of 0.003%/mATyp and line regulation of 0.05%/V you can provide a constant voltage at your output. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
Chip1Stop:
LDO Regulator Pos 1.8V 0.2A 6-Pin LFCSP EP T/R
Verical:
LDO Regulator Pos 1.8V 0.2A 6-Pin LFCSP EP T/R
输出接口数 1
输出电压 1.8 V
输出电流 200 mA
供电电流 265 µA
跌落电压 0.14V @200mA
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Min 1.8 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.2V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 LFCSP EP-6
封装 LFCSP EP-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP151ACPZ-1.8-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADM7160ACPZN1.8-R7 亚德诺 | 类似代替 | ADP151ACPZ-1.8-R7和ADM7160ACPZN1.8-R7的区别 |
NCP500SQL18T1G 安森美 | 功能相似 | ADP151ACPZ-1.8-R7和NCP500SQL18T1G的区别 |
NCP500SQL18T1 安森美 | 功能相似 | ADP151ACPZ-1.8-R7和NCP500SQL18T1的区别 |
