LDO Regulator Pos 3.3V 0.15A 5Pin TSOT T/R
PMIC - 稳压器 - 线性 正 固定 1 输出 150mA 5-TSOT
得捷:
ADP166 - LOW IQ LDO W/PASSTHROUG
立创商城:
ADP166AUJZ-3.3-R7
艾睿:
LDO Regulator Pos 1.2V to 4.2V 5-Pin TSOT-23 T/R
安富利:
LDO Regulator Pos 3.3V 0.15A 5-Pin TSOT T/R
Verical:
LDO Regulator Pos 3.3V 0.15A 5-Pin TSOT T/R
输出接口数 1
输出电压 3.3 V
输出电流 150 mA
供电电流 2.4µA ~ 6.2µA
静态电流 0.0059 mA
跌落电压 0.045V @10mA,0.12V @150mA
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Min 3.3 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±3.5 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 5

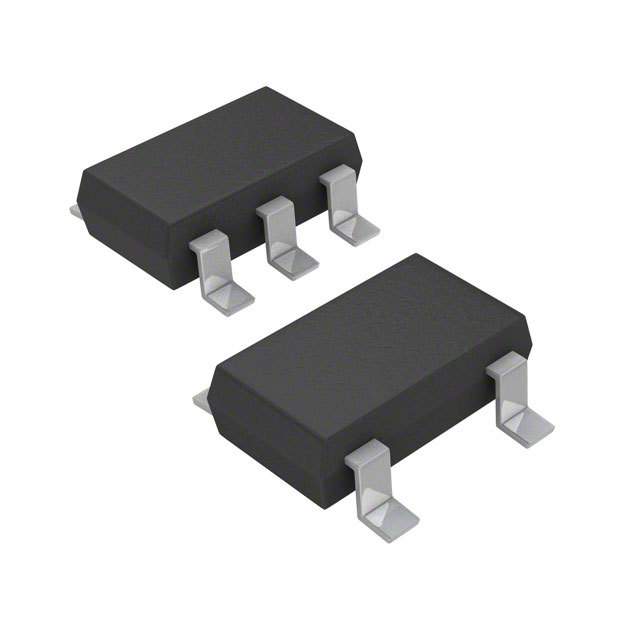

封装 TSOT-23-5
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Sport Watch, Motion Sensing/Fall Detection, Portable Blood Analyzer, Healthcare, EEG , Body Composition Measurement, SpO2, Medical Isolation and Patient Safety, Wearable Health Monitoring, Health, Wellness and Fitness, Clinical, NiBP based on ECG and PPG, Clinical Monitoring, Respiration Measurement
RoHS标准 RoHS Compliant
含铅标准 Lead Free
