超低静态电流150毫安, CMOS线性稳压器 Ultralow Quiescent Current, 150 mA, CMOS Linear Regulators
PMIC - 稳压器 - 线性 正 固定 1 输出 150mA 4-WLCSP(0.97x0.97)
得捷:
ULTRALOW QUIESCENT CURRENT, 150M
立创商城:

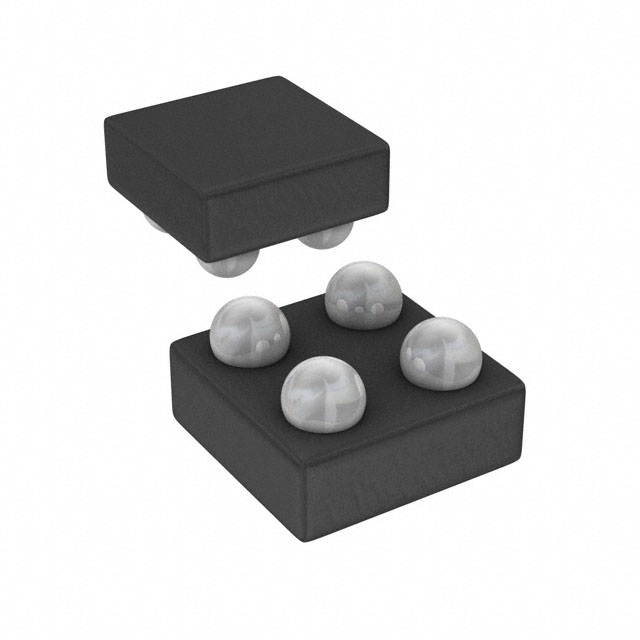

ADP162ACBZ-2.3-R7
艾睿:
Say goodbye to unstable voltages with this LDO ADP162ACBZ-2.3-R7 linear regulator from Analog Devices. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.195@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Using the part will provide the power your application needs by requiring a voltage only of 2.2 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 2.3 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.004%/mATyp and line regulation of 0.1%/V. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 2.3V 0.15A 4-Pin WLCSP T/R
输出接口数 1
输出电压 2.3 V
输出电流 150 mA
供电电流 42.0 µA
静态电流 0.00056 mA
跌落电压 0.195V @150mA
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 4

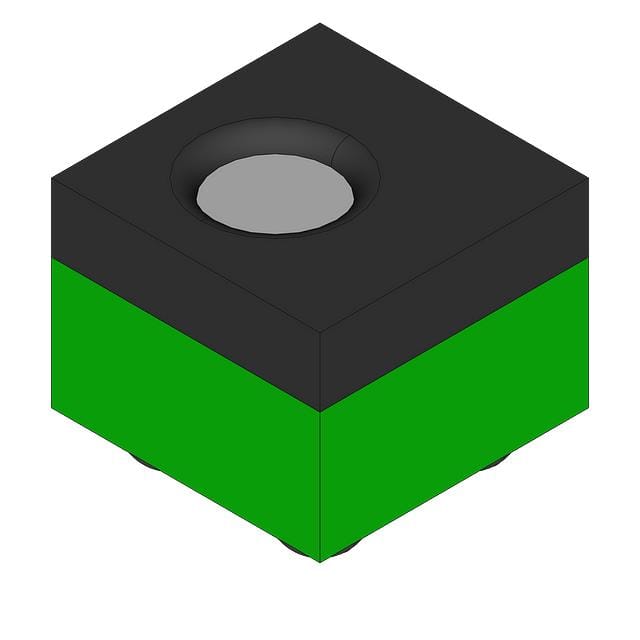

封装 WLCSP-4
封装 WLCSP-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
军工级 No
