超低噪声200 mA时, CMOS线性稳压器 Ultralow Noise,200 mA, CMOS Linear Regulator
PMIC - 稳压器 - 线性 正 固定 输出 200mA 4-WLCSP(0.76x0.76)
得捷:
IC REG LINEAR 1.5V 200MA 4WLCSP
立创商城:
ADP151ACBZ-1.5-R7
艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO ADP151ACBZ-1.5-R7 linear regulator from Analog Devices is perfect for you! It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.14@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. This will operate at a minimum voltage of 2.2 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.5 V, this is power management at its best. A load regulation of 0.004%/mATyp and line regulation of 0.05%/V is necessary for providing a constant voltage level at your output. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
Chip1Stop:
LDO Regulator Pos 1.5V 0.2A 4-Pin WLCSP T/R
DeviceMart:
IC REG LDO 1.5V .2A 4WLCSP
输出接口数 1
输出电压 1.5 V
输出电流 200 mA
供电电流 265 µA
跌落电压 0.01V @10mA,0.135V @200mA
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.2V ~ 5.5V
安装方式 Surface Mount
引脚数 4

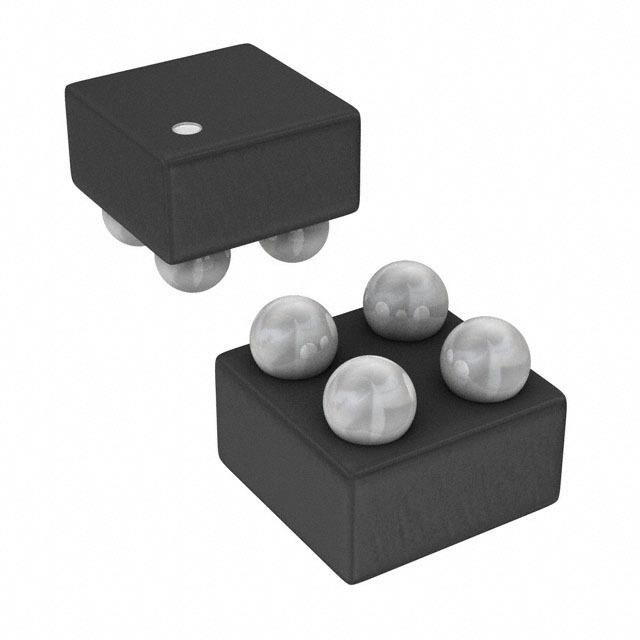

封装 WLCSP-4
封装 WLCSP-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP151ACBZ-1.5-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
TLV70515YFPR 德州仪器 | 功能相似 | ADP151ACBZ-1.5-R7和TLV70515YFPR的区别 |
TLV70515YFPT 德州仪器 | 功能相似 | ADP151ACBZ-1.5-R7和TLV70515YFPT的区别 |
