超低噪声200 mA时, CMOS线性稳压器 Ultralow Noise, 200 mA, CMOS Linear Regulator
PMIC - 稳压器 - 线性 正 固定 输出 200mA 6-LFCSP-UD(2x2)
得捷:
IC REG LINEAR 3V 200MA 6LFCSP
立创商城:
ADP151ACPZ-3.0-R7
贸泽:
Linear Voltage Regulators Ultra Low Noise 200mA CMOS
艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this LDO ADP151ACPZ-3.0-R7 linear regulator from Analog Devices to control your voltage levels! It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.01@10mA|0.15@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.2 V and no higher than 5.5 V. With a fixed output that has a voltage of 3 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.003%/mATyp and line regulation of 0.05%/V. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.03@10mA|0.23@200mA V. Its polarity is positive.
Chip1Stop:
LDO Regulator Pos 3V 0.2A 6-Pin LFCSP EP T/R
Verical:
LDO Regulator Pos 3V 0.2A 6-Pin LFCSP EP T/R
输出接口数 1
输出电压 3 V
输出电流 200 mA
供电电流 265 µA
跌落电压 0.01V @10mA,0.15V @200mA
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Min 3 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 6

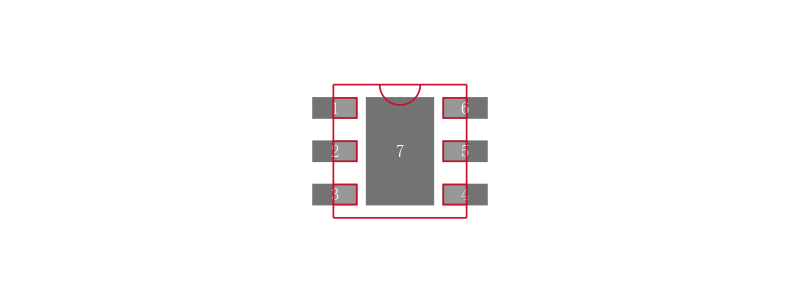

封装 LFCSP EP-6
长度 2 mm
宽度 2 mm
高度 0.53 mm
封装 LFCSP EP-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP151ACPZ-3.0-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
NCP500SQL30T1G 安森美 | 功能相似 | ADP151ACPZ-3.0-R7和NCP500SQL30T1G的区别 |
TPS78230QDRVRQ1 德州仪器 | 功能相似 | ADP151ACPZ-3.0-R7和TPS78230QDRVRQ1的区别 |
NCP500SQL30T1 安森美 | 功能相似 | ADP151ACPZ-3.0-R7和NCP500SQL30T1的区别 |
