ADP151ACBZ-1.2-R7

超低噪声200 mA时， CMOS线性稳压器 Ultralow Noise, 200 mA, CMOS Linear Regulator

Product Details

The ADP151 is an ultralow noise, low dropout linear regulator that operates from 2.2 V to 5.5 V and provides up to 200 mA of output current. The low 140 mV dropout voltage at 200 mA load improves efficiency and allows operation over a wide input voltage range.

Using an innovative circuit topology, the ADP151 achieves ultralow noise performance without the necessity of a bypass capacitor, making it ideal for noise-sensitive analog and RF applications. The ADP151 also achieves ultralow noise per-formance without compromising PSRR or transient line and load performance. The low 265 μA of quiescent current at 200 mA load makes the ADP151 suitable for battery-operated portable equipment.

The ADP151 also includes an internal pull-down resistor on the EN input.

The ADP151 is specifically designed for stable operation with tiny 1 μF, ±30% ceramic input and output capacitors to meet the requirements of high performance, space constrained applications.

The ADP151 is capable of 16 fixed output voltage options, ranging from 1.1 V to 3.3 V.

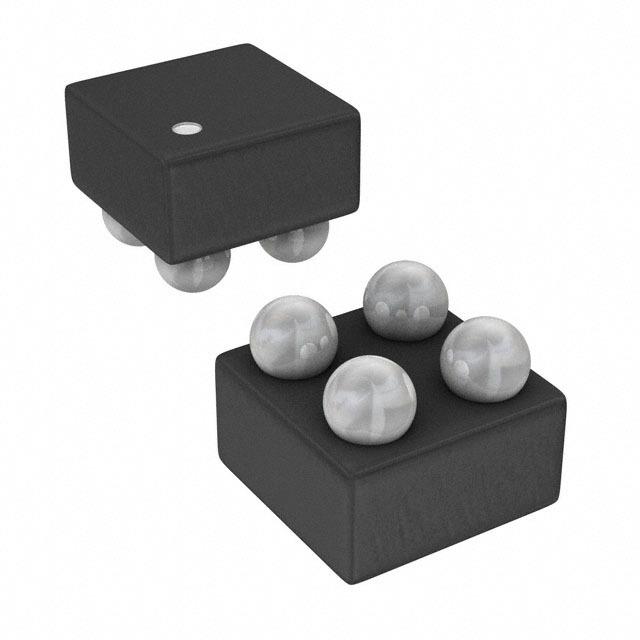

Short-circuit and thermal overload protection circuits prevent damage in adverse conditions. The ADP151 is available in tiny 5-lead TSOT, 6-lead LFCSP, and 4-ball, 0.4 mm pitch, halide-free WLCSP packages for the smallest footprint solution to meet a variety of portable power application requirements.

### Features and Benefits

.

Ultra low noise: 9 µV rms

.

No noise bypass capacitor required

.

Stable with 1 µF ceramic input and output capacitors

.

Maximum output current: 200 mA

.

Input voltage range: 2.2 V to 5.5 V

.

Low quiescent current

.

IGND = 10 µA with zero load

.

IGND = 265 μA with 200 mA load

.

Low shutdown current: <1 µA

.

See data sheet for additional features

** ADP151-EP supports defense and aerospace applications AQEC standard**

.

Download ADP151-EP data sheet pdf

.

Military temperature range −55°C to +125°C

.

Controlled manufacturing baseline

.

One assembly/test site

.

One fabrication site

.

Enhanced product change notification

.

Qualification data available on request

.

V62/12666 DSCC Drawing Number
