ANALOG DEVICES ADM1813-5ARTZ-RL7 复位电路, 漏极开路复位, 1.2V-5.5V输入, SOT-23-3
The ADM1813 series Voltage Monitoring Circuit features open-drain with internal pull-up resistor output. The voltage monitoring circuit can be used in any application where an electronic system needs to be reset when a voltage increases above or below a predetermined value. Because of the reset delay time incorporated into the ADM181x series, these devices can provide a safe start-up for electronic systems. Before a system initializes, the power supply must stabilize. Using the ADM181x series ensures that there are typically 150ms for the power supply to stabilize before the system is reset and safe system initialization begins.
- .
- Reliable voltage monitor with reset output
- .
- Initialization of microprocessor systems with added safety
电源电压DC 5.50V max
供电电流 0.016 mA

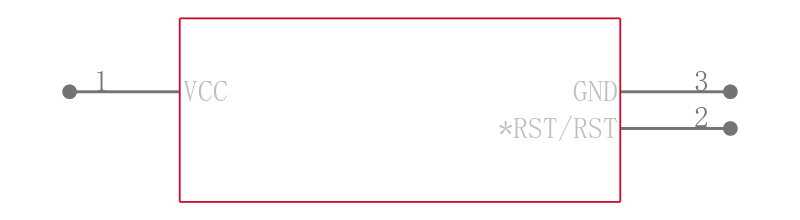

针脚数 3
阈值电压 4.62 V
复位电压Min 4.5 V
复位电压Max 4.75 V
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 0.95 mm
封装 SOT-23-3
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, 计算机和计算机周边, Power Management, Automation & Process Control, Automotive, Computers & Computer Peripherals, 电源管理, 自动化与过程控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM1813-5ARTZ-RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADM1813-5ART-RL 亚德诺 | 完全替代 | ADM1813-5ARTZ-RL7和ADM1813-5ART-RL的区别 |
ADM1813-5ART-RL7 亚德诺 | 类似代替 | ADM1813-5ARTZ-RL7和ADM1813-5ART-RL7的区别 |
ADM1813-5ARTZ-RL 亚德诺 | 类似代替 | ADM1813-5ARTZ-RL7和ADM1813-5ARTZ-RL的区别 |
