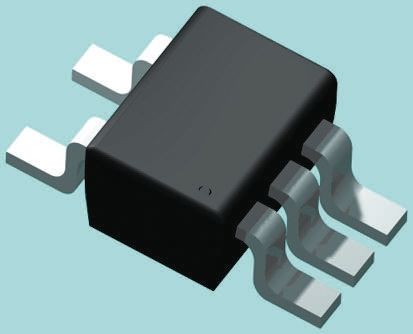

ANALOG DEVICES ADP1710AUJZ-3.3-R7 固定电压稳压器, LDO, 2.5V至5.5V, 150mV压差, 3.3V输出, 150mA输出, TSOT-5
LDO(低压降)线性稳压器,3.xV 输出,Analog Devices
Analog Devices 低压降(LDO)线性调节器提供快速瞬态响应、极佳的线路和负载调节,并且具有宽输入电压范围。
得捷:
IC REG LINEAR 3.3V 150MA TSOT5
立创商城:
正 Vin=5.5V Vout=3.3V 150mA 58dB@1kHz
欧时:
LDO(低压降)线性稳压器,3.xV 输出,Analog DevicesAnalog Devices 低压降(LDO)线性调节器提供快速瞬态响应、极佳的线路和负载调节,并且具有宽输入电压范围。### LDO(低压降)线性电压调节器 - Analog Devices低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
艾睿:
This LDO ADP1710AUJZ-3.3-R7 linear regulator from Analog Devices gives you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.1@100mA|0.15@150mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Using the part will provide the power your application needs by requiring a voltage only of 2.5 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. At a load regulation of 0.002%/mATyp and line regulation of 0.1%/V your circuit is capable of maintaining a constant voltage level at your output. This product will be shipped in tape and reel packaging so that components can be mounted effectively. The maximum dropout voltage is 0.175@100mA|0.25@150mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
Chip1Stop:
LDO Regulator Pos 3.3V 0.15A 5-Pin TSOT T/R
Verical:
LDO Regulator Pos 3.3V 0.15A 5-Pin TSOT T/R
Newark:
# ANALOG DEVICES ADP1710AUJZ-3.3-R7 Fixed LDO Voltage Regulator, 2.5V to 5.5V In, 150mV Dropout, 3.3V/150mA Out, TSOT-5
DeviceMart:
IC REG LDO 3.3V .15A TSOT-23-5
Win Source:
IC REG LDO 3.3V 0.15A TSOT23-5
输出接口数 1
输入电压DC 5.50V max
输出电压 3.3 V
输出电流 150 mA
供电电流 1.30 mA
针脚数 5
跌落电压 150 mV
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电流Max 150 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 0.9 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP1710AUJZ-3.3-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP120-AUJZ33R7 亚德诺 | 类似代替 | ADP1710AUJZ-3.3-R7和ADP120-AUJZ33R7的区别 |
SP6205EM5-L-3-3 艾科嘉 | 功能相似 | ADP1710AUJZ-3.3-R7和SP6205EM5-L-3-3的区别 |
NCP502SN33T1G 安森美 | 功能相似 | ADP1710AUJZ-3.3-R7和NCP502SN33T1G的区别 |
