5.5 V输入500毫安,低静态电流, CMOS线性稳压器 5.5 V Input, 500 mA, Low Quiescent Current, CMOS Linear Regulators
Product Details
The ADP124/ADP125 are low quiescent current, low dropout linear regulators. They are designed to operate from an input voltage between 2.3 V and 5.5 V and to provide up to 500 mA of output current. The low 130 mV dropout voltage at a 500 mA load improves efficiency and allows operation over a wide input voltage range.
The low 210 μA of quiescent current with a 500 mA load makes the ADP124/ADP125 ideal for battery-operated portable equipment. The ADP124 is capable of 31 fixed-output voltages from 1.75 V to 3.3 V. The ADP125 is the adjustable version of the device and allows the output voltage to be set between 0.8 V and 5.0 V by an external voltage divider. The ADP124/ADP125 are specifically designed for stable operation with tiny 1 μF ceramic input and output capacitors to meet the requirements of high performance, space constrained applications.
The ADP124/ADP125 have an internal soft start that gives a constant start-up time of 350 μs. Short-circuit protection and thermal overload protection circuits prevent damage in adverse conditions. The ADP124/ADP125 are available in an 8-lead exposed paddle MSOP package. When compared with the standard MSOP package, the exposed paddle MSOP package has lower thermal resistance θJA. The lower thermal resistance package allows the ADP124/ADP125 to meet the needs of a variety of portable applications while minimizing the rise in junction temperature.
**Applications**
### Features and Benefits
输出接口数 1
输出电压 3 V
输出电流 500 mA
供电电流 45.0 µA
静态电流 0.045 mA
跌落电压 0.003V @10mA,0.065V @250mA,0.13V @500mA
输入电压Max 5.5 V
输入电压Min 2.3 V
输出电压Min 3 V
输出电流Max 0.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 5.5V ~ 2.3V
安装方式 Surface Mount

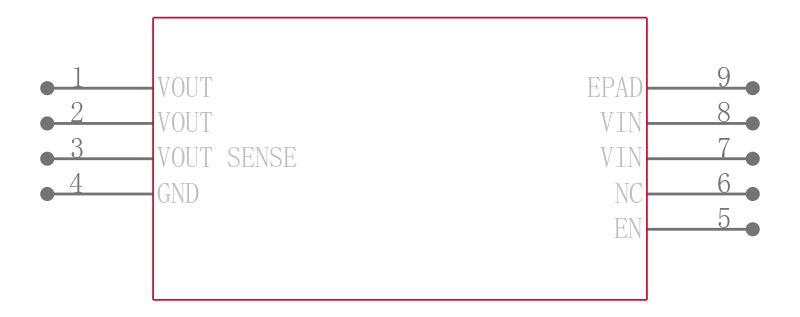

引脚数 8

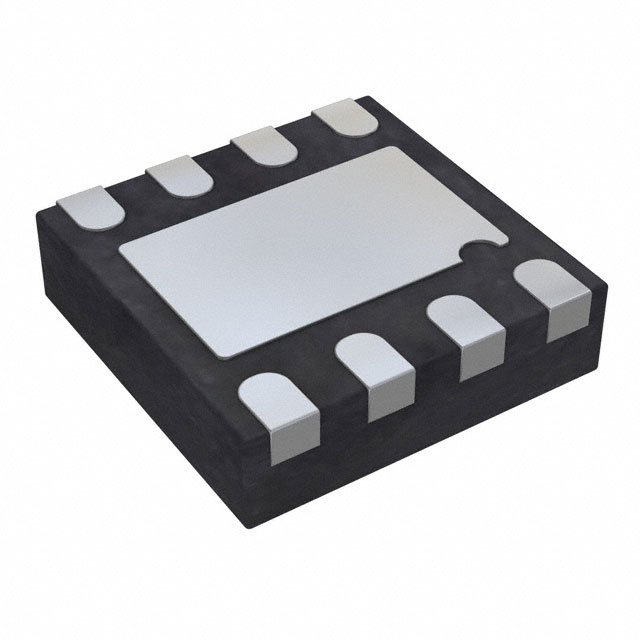

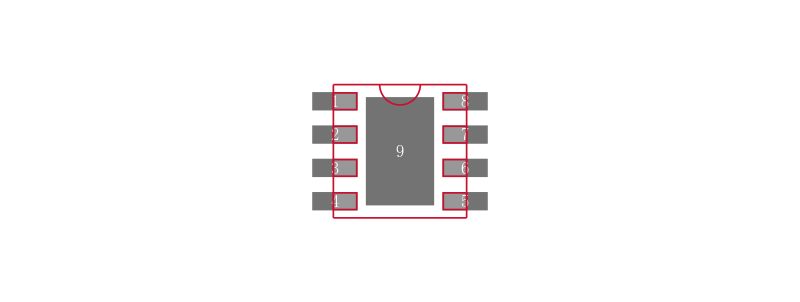

封装 LFCSP-8
宽度 2 mm
高度 0.53 mm
封装 LFCSP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
