ANALOG DEVICES ADM1812-5ARTZ-RL7 电压监视器, 高电平有效复位, 1.2V-5.5V输入, SOT-23-3
The ADM1812 series Voltage Monitoring Circuit features open-drain with internal pull-up resistor output. The voltage monitoring circuit can be used in any application where an electronic system needs to be reset when a voltage increases above or below a predetermined value. Because of the reset delay time incorporated into the ADM181x series, this device can provide a safe start-up for electronic systems. Before a system initializes, the power supply must stabilize. Using the ADM181x series ensures that there are typically 150ms for the power supply to stabilize before the system is reset and safe system initialization begins.
- .
- Reliable voltage monitor with reset output
- .
- Initialization of microprocessor systems with added safety
电源电压DC 5.50V max
供电电流 0.016 mA
针脚数 3
阈值电压 4.62 V
复位电压Min 4.5 V
复位电压Max 4.75 V
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 3

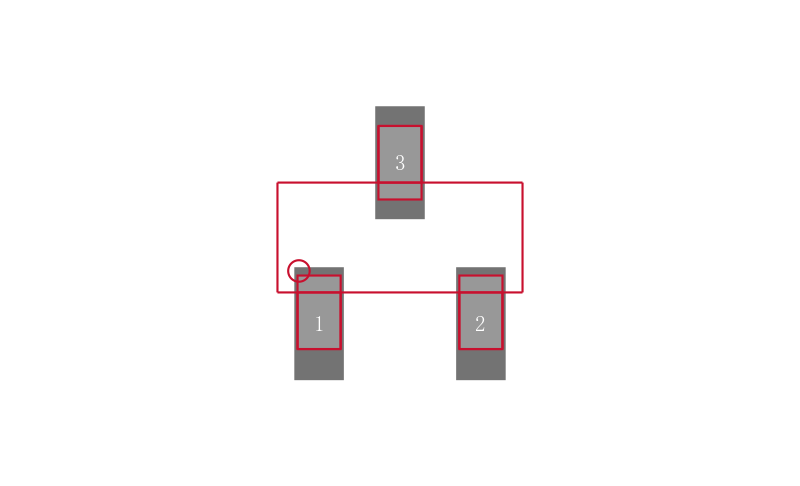

封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 0.95 mm
封装 SOT-23-3
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, Automation & Process Control, 自动化与过程控制, 电源管理, Computers & Computer Peripherals, Power Management, Automotive, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM1812-5ARTZ-RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
STM1812LWX7F 意法半导体 | 完全替代 | ADM1812-5ARTZ-RL7和STM1812LWX7F的区别 |
ADM1812-5ART-REEL7 亚德诺 | 类似代替 | ADM1812-5ARTZ-RL7和ADM1812-5ART-REEL7的区别 |
ADM1812-5ARTZ-REEL 亚德诺 | 类似代替 | ADM1812-5ARTZ-RL7和ADM1812-5ARTZ-REEL的区别 |
