ANALOG DEVICES ADM1815-R23ARTZ-R7 复位电路, 高电平有效, 推-挽复位, 1.2V-5.5V输入, SOT-23-3
Do your circuit"s needs demand a great deal from your processor? The microprocessor supervisory circuit from Analog Devices is the perfect backup solution. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This part has an operating temperature range of -40 °C to 105 °C. It has a typical reset threshold voltage of 2.31 V, with a minimum of 2.25 V and a maximum of 2.37 V. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V.
电源电压DC 1.20V min
供电电流 16.0 µA
针脚数 3
阈值电压 2.31 V
复位电压Min 2.25 V
复位电压Max 2.37 V
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 3

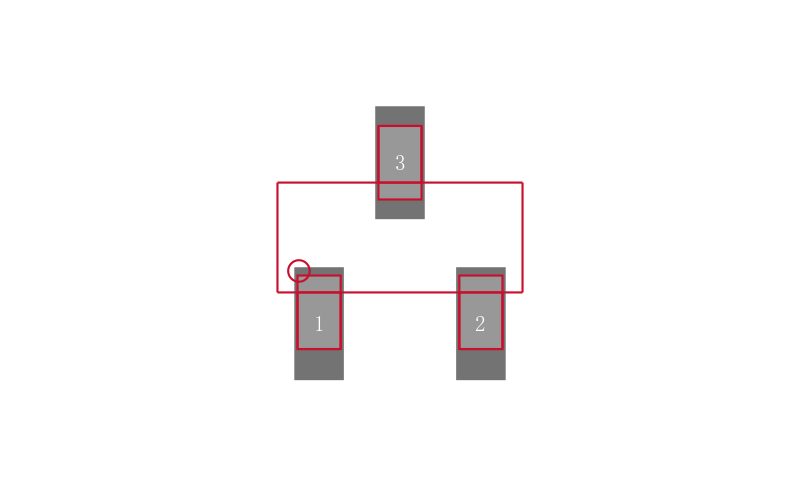

封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 1.02 mm
封装 SOT-23-3
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM1815-R23ARTZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADM1815-R23ART-RL7 亚德诺 | 类似代替 | ADM1815-R23ARTZ-R7和ADM1815-R23ART-RL7的区别 |
