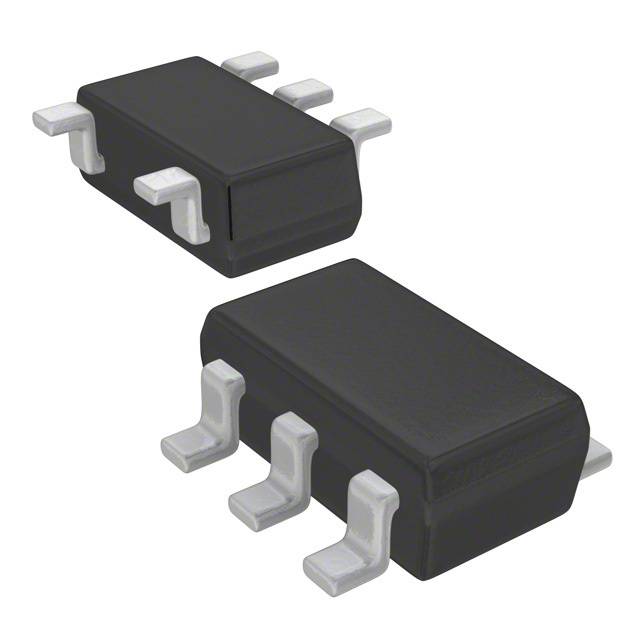

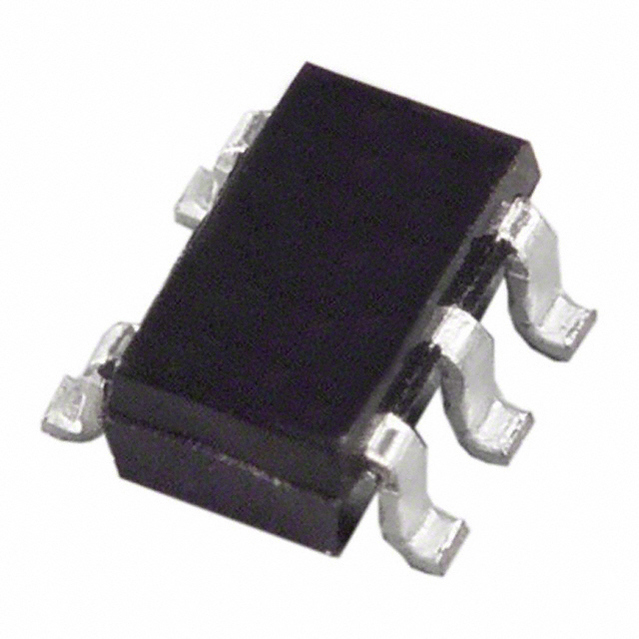

ADM6319B31ARJZ-RL7

ANALOG DEVICES  ADM6319B31ARJZ-RL7  监控器电路, 手动复位, 高电平有效, 低电平有效复位, 1V-5.5V输入, SOT-23-5

The ADM6319 series Supervisory Circuit with manual reset input, active-low and active-high push-pull output. The ADM6316/ADM6317/ADM6318/ADM6319/ADM6320/ADM6321/ADM6322 is supervisory circuit that monitors power supply voltage levels and code execution integrity in microprocessor-based systems. As well as providing power-on reset signals, an on-chip watchdog timer can reset the microprocessor if it fails to strobe within a preset timeout period. A reset signal can also be asserted by an external push button through a manual reset input. A reset signal can also be asserted by an external push button through a manual reset input. The seven devices feature different combinations of watchdog input, manual reset input and output stage configuration. Each device is available in a choice of 26 reset threshold options ranging from 2.5 to 5V in 100mV increments.

.

Guaranteed reset output valid to VCC=1V

.

Power supply glitch immunity

.

Specified over industrial temperature range

.

5µA Low power consumption
