ANALOG DEVICES ADM1813-10ARTZ-RL7 复位电路, 漏极开路复位, 1.2V-5.5V输入, SOT-23-3
Use the microprocessor supervisory circuit from Analog Devices to protect your circuit in the event of an emergency. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 4.35 V, with a minimum of 4.25 V and a maximum of 4.49 V. This part has an operating temperature range of -40 °C to 105 °C.
电源电压DC 5.50V max
供电电流 16.0 µA
针脚数 3
阈值电压 4.35 V
复位电压Min 4.25 V
复位电压Max 4.49 V
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 3

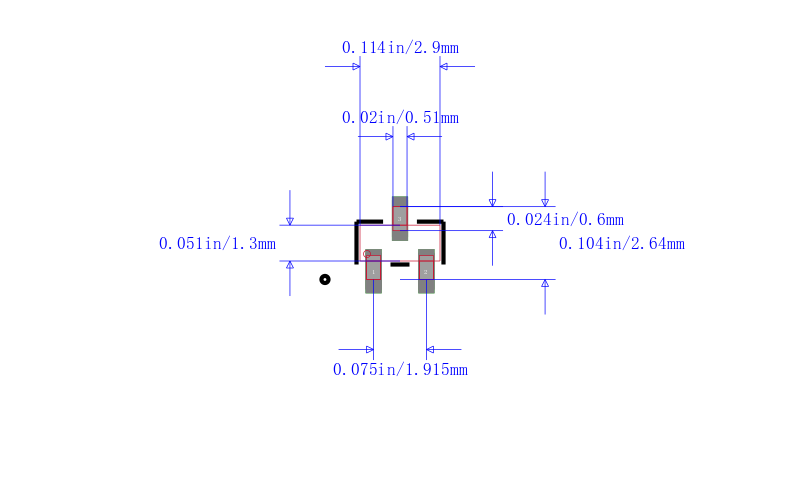

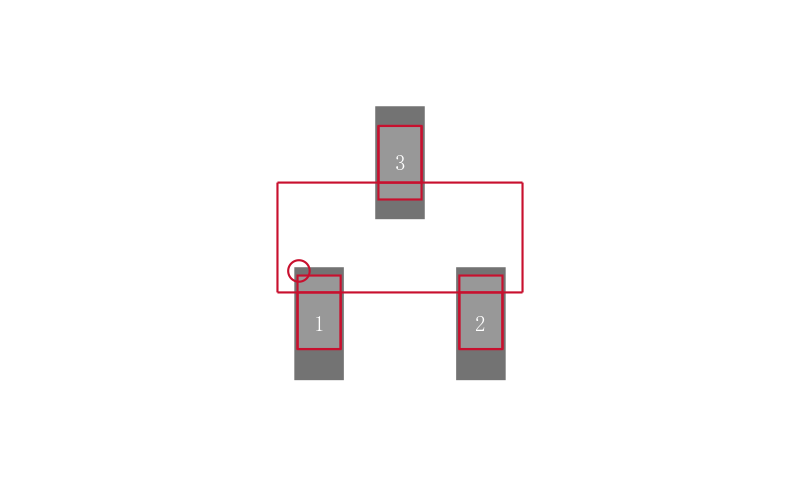

封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 1.02 mm
封装 SOT-23-3
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM1813-10ARTZ-RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADM1813-10ART-RL7 亚德诺 | 完全替代 | ADM1813-10ARTZ-RL7和ADM1813-10ART-RL7的区别 |
ADM1813-10ARTZ-RL 亚德诺 | 完全替代 | ADM1813-10ARTZ-RL7和ADM1813-10ARTZ-RL的区别 |
ADM1813-10ART-REEL 亚德诺 | 类似代替 | ADM1813-10ARTZ-RL7和ADM1813-10ART-REEL的区别 |
