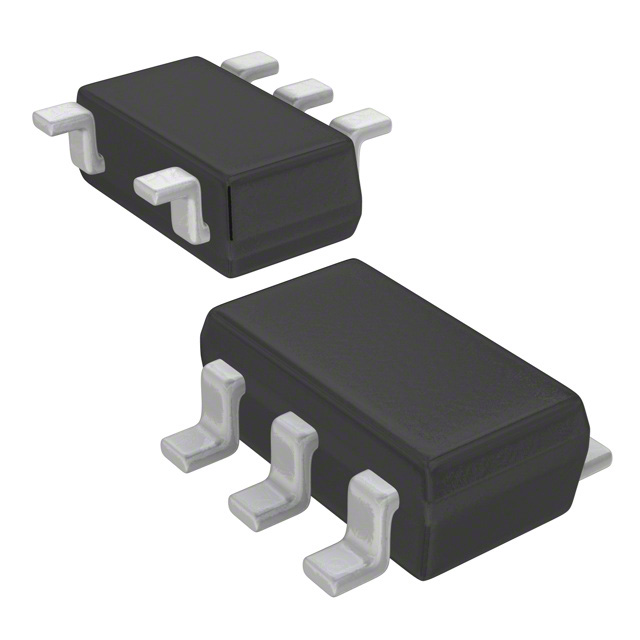

ANALOG DEVICES ADM6316DZ31ARJZ-R7 监控器电路, 手动复位, 低电平有效复位, 1V-5.5V输入, SOT-23-5
The ADM6316 series Supervisory Circuit with watch dog, manual reset and active-low push-pull output. The ADM6316/ADM6317/ADM6318/ADM6319/ADM6320/ADM6321/ADM6322 is a supervisory circuit that monitors power supply voltage levels and code execution integrity in microprocessor-based systems. As well as providing power-on reset signals, an on-chip watchdog timer can reset the microprocessor if it fails to strobe within a preset timeout period. A reset signal can also be asserted by an external push button through a manual reset input. The seven devices feature different combinations of watchdog input, manual reset input and output stage configuration. Each device is available in a choice of 26 reset threshold options ranging from 2.5 to 5V in 100mV increments.
电源电压DC 5.50V max
供电电流 0.02 mA
针脚数 5
阈值电压 3.08 V
复位电压Min 3.034 V
复位电压Max 3.126 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, 便携式器材, Automation & Process Control, 传感与仪器, Sensing & Instrumentation, Radar, 自动化与过程控制, Portable Devices, 计算机和计算机周边, Aerospace and Defense, Computers & Computer Peripherals, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADM6316DZ31ARJZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADM6316DZ31ARJ-RL7 亚德诺 | 类似代替 | ADM6316DZ31ARJZ-R7和ADM6316DZ31ARJ-RL7的区别 |
