AC-DC Power Supply Single-OUT 15V 2.7A 40W
**ABC40 Series**

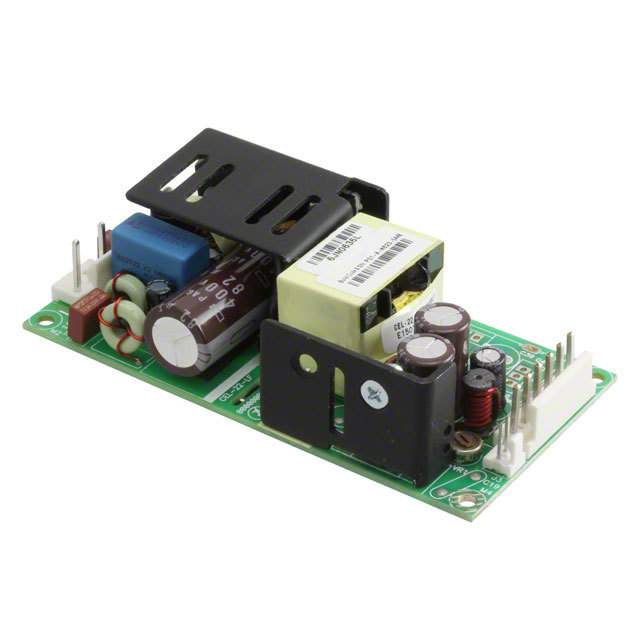

ABC40 series are 40W open frame switch mode power supplies with a single output. Their high efficiency allows a very minimal power loss in end equipment. These compact and efficient ac-dc embedded switch mode power supplies SMPS are suitable for use in telecom, datacom and industrial equipment.
得捷:
AC/DC CONVERTER 15V 40W
艾睿:
AC/DC Power Supply Single-OUT 15V 2.7A 40W
Allied Electronics:
Power Supply; AC-DC; 15V@2.66A; 90-264V In; Open Frame; Panel Mount; PFC; ABC Series
Chip1Stop:
AC/DC Power Supply Single-OUT 15V 2.7A 40W
Verical:
AC/DC Power Supply Single-OUT 15V 2.7A 40W
MASTER:
AC/DC Power Supply Single-OUT 15V 2.7A 40W
Online Components:
AC/DC Power Supply Single-OUT 15V 2.7A 40W
Electro Sonic:
AC/DC Power Supply Single-OUT 15V 2.7A 40W
额定功率 40 W
输出接口数 1
输出电压 15 V
输出电流 2.7 A
输出功率 40 W
隔离电压 4.242 kV
输入电压AC Max 264 V
输入电压AC Min 90 V
输出电流Max 2.7 A
输入电流Min 0.85 A
输出功率Max 40 W
工作温度Max 70 ℃
工作温度Min -20 ℃
输入电压 90VAC ~ 264VAC
安装方式 Panel
长度 4 in
宽度 2 in
高度 30.48 mm
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Tray
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
