ANALOG DEVICES ADM6320CY29ARJZ-R7 芯片, 监控器, 10UA, 5.5V, SOT-23-5
Use the microprocessor supervisory circuit from Analog Devices to protect your circuit in the event of an emergency. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 2.93 V, with a minimum of 2.886 V and a maximum of 2.974 V.
电源电压DC 5.50V max
供电电流 0.02 mA
针脚数 5
阈值电压 2.93 V
复位电压Min 2.886 V
复位电压Max 2.974 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 5

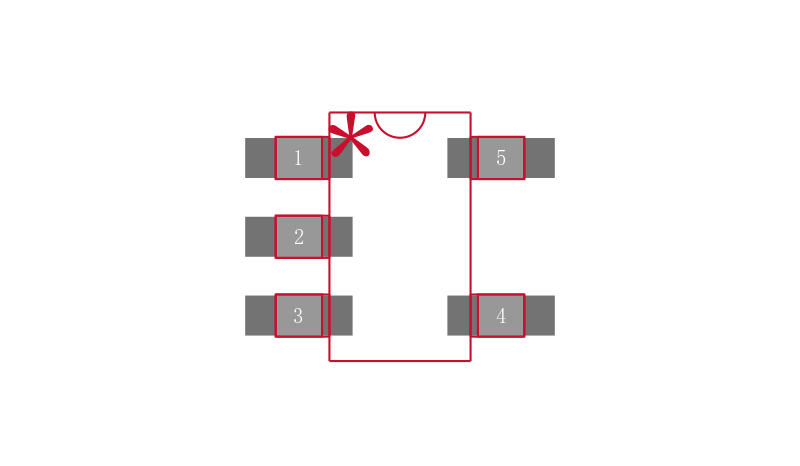

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通信与网络, 传感与仪器, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM6320CY29ARJZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADM8320WCY29ARJZR7 亚德诺 | 类似代替 | ADM6320CY29ARJZ-R7和ADM8320WCY29ARJZR7的区别 |
ADM6320CY29ARJ-RL7 亚德诺 | 类似代替 | ADM6320CY29ARJZ-R7和ADM6320CY29ARJ-RL7的区别 |
TPS3823-33DBVR 德州仪器 | 功能相似 | ADM6320CY29ARJZ-R7和TPS3823-33DBVR的区别 |
