ANALOG DEVICES ADP1712AUJZ-1.0-R7 稳压器, 固定LDO, 2.5V至5.5V输入, 1V/300mA输出, TSOT-5
The ADP1712 series low-dropout LDO Linear Regulator operate from 2.5 to 5.5V and provide up to 300mA of output current. The low 170mV dropout voltage at a 300mA load improves efficiency and allows operation over a wide input voltage range. Using a novel scaling architecture, ground current is a very low 75µA when driving a 100µA load. The ADP1712 series device are available in 16 fixed output voltage options and also available in an adjustable version, which allows output voltages that range from 0.8 to 5V via an external divider. The ADP1712 series fixed version allows an external capacitor to be connected to program the soft-start time. The ADP1712 series device are optimized for stable operation with small 2.2µF ceramic output capacitors, allowing good transient performance while occupying minimal board space.
输出接口数 1
输出电压 1 V
输出电流 300 mA
供电电流 70µA ~ 420µA
针脚数 5
跌落电压 0.17V @300mA
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电压Min 1 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输出通道数 1
输入电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 5

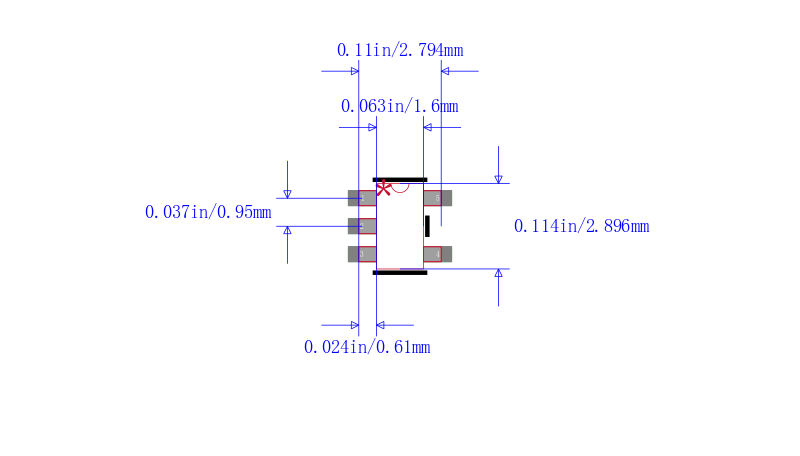

封装 TSOT-23-5
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Portable Devices, Consumer Electronics, Audio, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
