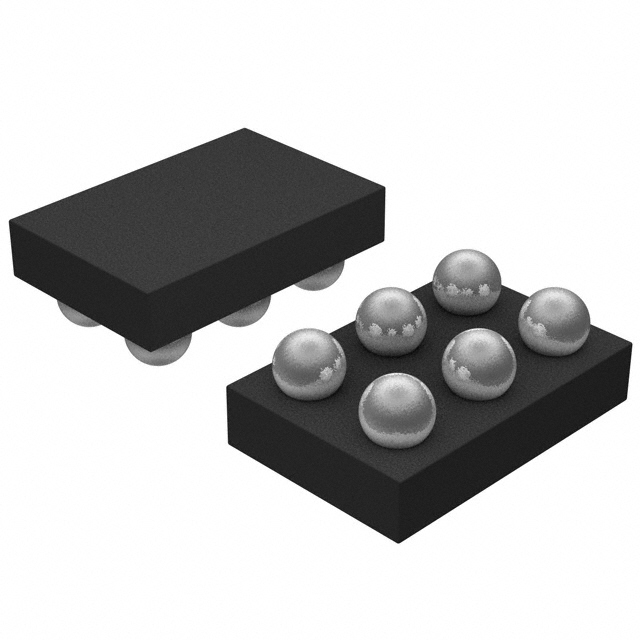

LDO Regulator Pos 3.3V 0.2A 6Pin WLCSP T/R
PMIC - 稳压器 - 线性 正 固定 1 输出 200mA 6-WLCSP(0.95x1.16)
得捷:
IC REG LINEAR 3.3V 200MA 6WLCSP
艾睿:
This LDO ADP7112ACBZ-3.3-R7 linear regulator from Analog Devices acts like a variable resistor to maintain a steady voltage level. It has an overall accuracy of ±0.8 %. Its typical dropout voltage at current is 0.03@10mA|0.2@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2Typ A. Use this part at voltages between 2.7 V and 20 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.002%/mATyp and line regulation of 0.02%/V. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. The maximum dropout voltage is 0.06@10mA|0.42@200mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 3.3V 0.2A 6-Pin WLCSP T/R
Verical:
LDO Regulator Pos 3.3V 0.2A 6-Pin WLCSP T/R
输出接口数 1
输出电压 3.3 V
输出电流 200 mA
静态电流 0.05 mA
跌落电压 0.2V @200mA,0.03V @10mA
输入电压Max 20 V
输入电压Min 2.7 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.8 %
输入电压 ≤20 V
安装方式 Surface Mount
引脚数 6
封装 WLCSP-6
封装 WLCSP-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
