AMP-320-EUR

AMP-320-EUR 交流/直流钳表电气电动机维护AMP-320-EUR True-RMS 钳表提供完整系列的测量功能，用于现代工业环境。真有效值 电流测量：最大 600A 交流/直流 微安范围：0-2000 μA 直流（串联测量，带电缆，不带夹子） 电压测量：最大 600V 交流/直流 突入电流功能 非接触式电压探测器 低通滤波器：用于变频驱动 自动量程 电阻、电容、频率、温度测量（K 型热电偶） 最小/最大/平均功能 钳口开口：最大 35mm 背光大 LCD 显示屏 内置手电筒灯 电气安全：III 类 600V ### 随附钳表，2 节 AAA 1.5V 电池，硬质携带箱，测试导线，鳄鱼夹，温度探头，用户手册。### 交流和直流数字钳形表

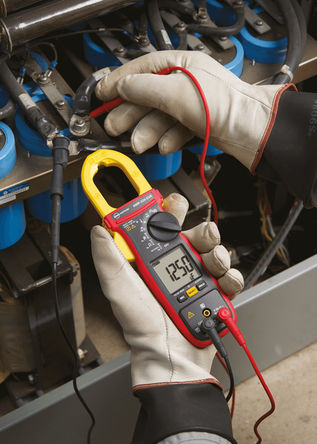

The is an electrical motor maintenance AC/DC Clamp Meter offers a complete range of measuring functions for modern industrial environments and motor testing. It features True-RMS sensing, low pass filters and fast response processors for quick, error-free measurements. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp and a third input jack enables motor rotation and 3-phase sequence testing. The inrush current measurements for motor start-up monitoring, allow users to verify that the motor is receiving the required inrush current to support proper motor start. The DC micro amps output for measurement of flame sensors. Test the proper operation of the flame sensor safety system in gas appliances. A broken sensor in a gas appliance will prevent the safety valve from opening and the appliance will not work. It functions to verify quality of electrical connections and to check if motor and transformer coils are working properly.

.

Low pass filter for variable frequency drives

.

DC micro amps for flame sensor testing

.

Capacitance measurement for start and run motor capacitors

.

CAT III 600V safety rating

.

True-RMS

.

Amp-Tip function

.

Non-contact voltage detection NCV

.

Audible continuity and diode test

.

Data hold, relative zero, max/min/avg mode

.

Large LCD backlit display
