ADP222ACPZ-3330-R7概述

双通道300 mA输出,低噪声 Dual, 300 mA Output, Low Noise

Product Details

The 300 mA, adjustable dual output ADP223/ADP225 and fixed dual output ADP222/ADP224 combine high PSRR, low noise, low quiescent current, and low dropout voltage in a voltage regulator that is ideally suited for wireless applications with demanding performance and board space requirements.

The low quiescent current, low dropout voltage, and wide input voltage range of the ADP222/ADP223/ADP224/ADP225 extend the battery life of portable devices.

The ADP222/ADP223/ADP224/ADP225 maintain power supply rejection greater than 60 dB for frequencies as high as 100 kHz while operating with a low headroom voltage. The ADP222/ADP223/ADP224/ADP225 offer much lower noise performance than competing LDOs without the need for a noise bypass capacitor. Overcurrent and thermal protection circuitry prevent damage in adverse conditions.

The ADP224 and ADP225 are identical to the ADP222 and ADP223, respectively, but with the addition of a quick output discharge QOD feature.

The ADP222/ADP223/ADP224/ADP225 are available in a small 8-lead, 2 mm x 2 mm LFCSP package and are stable with tiny 1 μF, ±30% ceramic output capacitors, resulting in the smallest possible board area for a wide variety of portable power needs.

**APPLICATIONS**

.
Mobile phones
.
Digital camera and audio devices
.
Portable and battery-powered equipment
.
Portable medical devices
.
Post dc-to-dc regulation

### Features and Benefits

.
Input voltage range: 2.5 V to 5.5 V
.
Small, 8-lead, 2 mm x 2 mm LFCSP package
.
Initial accuracy: ±1%
.
High PSRR: 70 dB at 10 kHz, 60 dB at 100 kHz, 40 dB at 1 MHz
.
Low noise: 27 μV rms at VOUT = 1.2 V, 50 μV rms at VOUT = 2.8 V
.
Excellent transient response
.
Low dropout voltage: 170 mV at 300 mA load
.
65 μA typical ground current at no load, both LDOs enabled
.
Overcurrent and thermal protection
ADP222ACPZ-3330-R7中文资料参数规格
技术参数

输出接口数 2

输出电流 300 mA

跌落电压 0.17V @300mA,0.006V @10mA

输入电压Max 5.5 V

输入电压Min 2.5 V

输出电流Max 0.3 A

工作温度Max 125 ℃

工作温度Min -40 ℃

精度 ±1 %

电源电压 2.5 V

输入电压 2.5V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 LFCSP EP-8

外形尺寸

封装 LFCSP EP-8

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

ADP222ACPZ-3330-R7引脚图与封装图
ADP222ACPZ-3330-R7引脚图

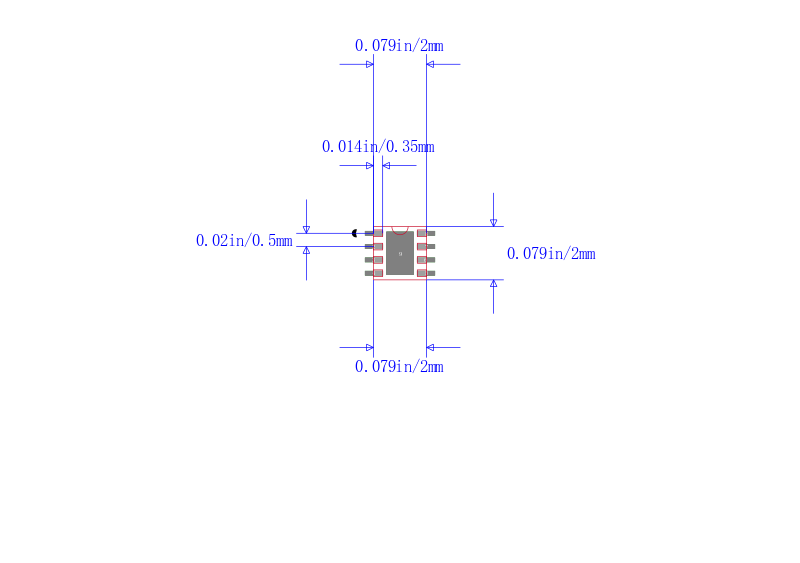

ADP222ACPZ-3330-R7封装图
ADP222ACPZ-3330-R7封装焊盘图
在线购买ADP222ACPZ-3330-R7
型号: ADP222ACPZ-3330-R7
制造商: ADI 亚德诺
描述:双通道300 mA输出,低噪声 Dual, 300 mA Output, Low Noise
