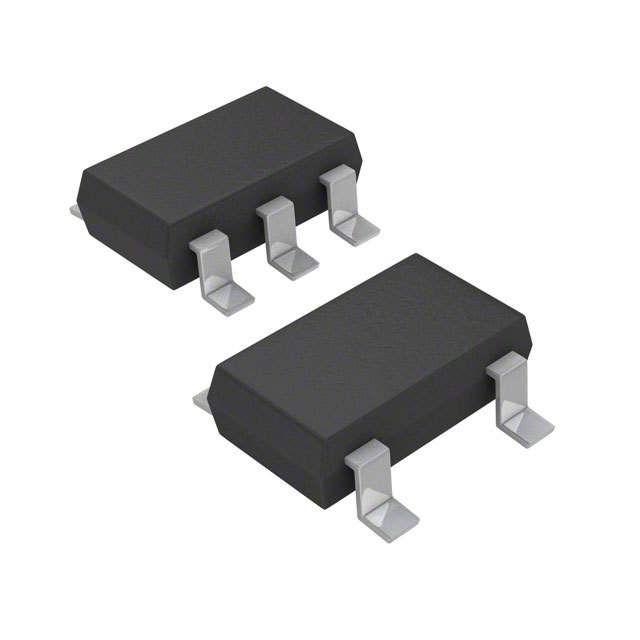

ANALOG DEVICES ADM7160AUJZ-1.8-R2 稳压器, 固定LDO, 2.2V至5.5V输入, 1.8V/200mA输出, TSOT-5
Product Details
The ADM7160 is an ultralow noise, low dropout linear regulator that operates from 2.2 V to 5.5 V and provides up to 200 mA of output current. The low 150 mV dropout voltage at 200 mA load improves efficiency and allows operation over a wide input voltage range.
Using an innovative circuit topology, the ADM7160 achieves ultralow noise performance without the need for a bypass capacitor, making it ideal for noise-sensitive analog front end and RF applications. The ADM7160 also achieves ultralow noise performance without compromising PSRR or transient line and load performance.
Current-limit and thermal overload protection circuits prevent damage under adverse conditions. The ADM7160 also includes an internal pull-down resistor on the EN input.
The ADM7160 is specifically designed for stable operation with tiny 1 μF, ±30% ceramic input and output capacitors to meet the requirements of high performance, space constrained applications.
The ADM7160 is available in tiny 5-lead TSOT and 6-lead LFCSP packages with 16 fixed output voltage options, ranging from 1.1 V to 3.3 V. The LFCSP offers a very compact solution that provides excellent thermal performance for applications that require up to 200 mA of output current in a small, low profile footprint.
**APPLICATIONS**
### Features and Benefits
3 μV rms, 0.1 Hz to 10 Hz
9.5 μV rms, 0.1 Hz to 100 kHz
9 µV rms, 10Hz to 100KHz
17 µV rms, 10Hz to 1MHz
150 mV at 200 mA load
输出接口数 1
输出电压 1.8 V
输出电流 200 mA
针脚数 5
跌落电压 150 mV
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 2.2V ~ 5.5V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADM7160AUJZ-1.8-R2 ADI 亚德诺 | 当前型号 | 当前型号 |
ADM7160AUJZ-1.8-R7 亚德诺 | 类似代替 | ADM7160AUJZ-1.8-R2和ADM7160AUJZ-1.8-R7的区别 |
