AC-DC Power Supply Triple-OUT 5.2V/23.8V/-12.8V 6A/1A/0.5A 40W
**ABC40 Series**

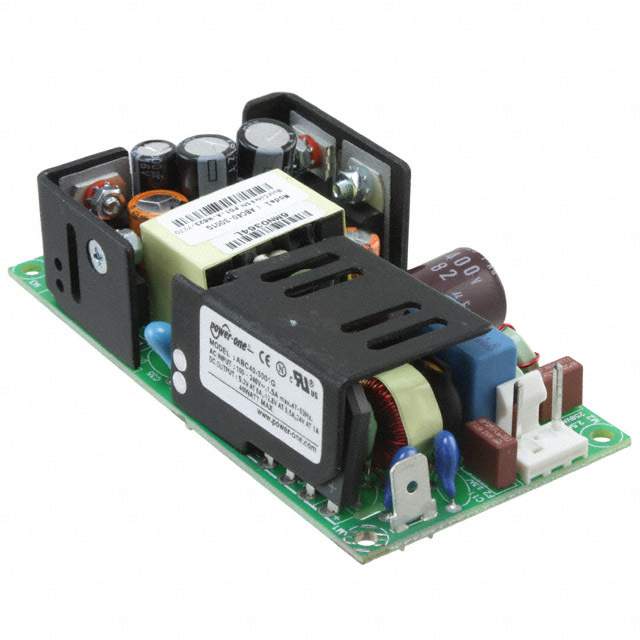

ABC40 series are 40W open frame switch mode power supplies with a single output. Their high efficiency allows a very minimal power loss in end equipment. These compact and efficient ac-dc embedded switch mode power supplies SMPS are suitable for use in telecom, datacom and industrial equipment.
得捷:
AC/DC CNVRTR 5.2V 24V -12.8V 40W
贸泽:
Switching Power Supplies 40W 5.2/23.8/-12.8V @ 6/1/0.5A
艾睿:
AC/DC Power Supply Triple-OUT 5.2V/23.8V/-12.8V 6A/1A/0.5A 40W
Allied Electronics:
Power Supply; AC-DC; 5.2V@6A, 23.8V@1A, -12.8V@0.5; 90-264V In; Open Frame; ABC Series
Chip1Stop:
AC/DC Power Supply Triple-OUT 5.2V/23.8V/-12.8V 6A/1A/0.5A 40W
Verical:
AC/DC Power Supply Triple-OUT 5.2V/23.8V/-12.8V 6A/1A/0.5A 40W
MASTER:
AC/DC Power Supply Triple-OUT 5.2V/23.8V/-12.8V 6A/1A/0.5A 40W
Online Components:
AC/DC Power Supply Triple-OUT 5.2V/23.8V/-12.8V 6A/1A/0.5A 40W
Electro Sonic:
AC/DC Power Supply Triple-OUT 5.2V/23.8V/-12.8V 6A/1A/0.5A 40W
额定功率 40 W
输出接口数 3
输出功率 40 W
隔离电压 4.242 kV
输入电压AC Max 264 V
输入电压AC Min 90 V
输入电流Min 0.85 A
输出功率Max 40 W
额定功率Max 40 W
工作温度Max 70 ℃
工作温度Min -20 ℃
输入电压 90VAC ~ 264VAC
安装方式 Panel
长度 101.6 mm
宽度 50.8 mm
高度 30.48 mm
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
