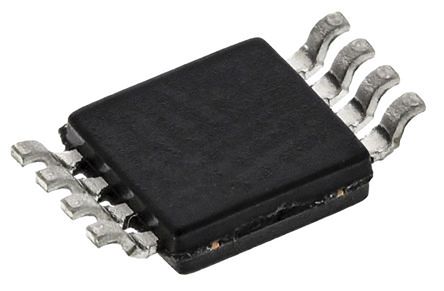

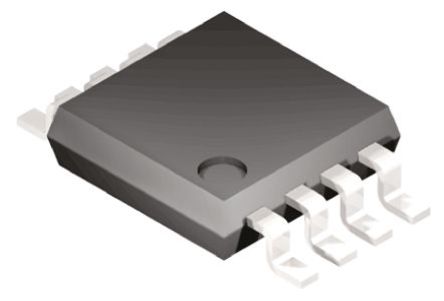

ANALOG DEVICES ADP1720ARMZ-5-R7 芯片, 线性稳压器
LDO(低压降)线性电压调节器,5V 输出,Analog Devices
Analog Devices 低压降(LDO)线性调节器提供快速瞬态响应、极佳的线路和负载调节,并且具有宽输入电压范围。
### LDO(低压降)线性电压调节器 - Analog Devices
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
欧时:
Analog Devices ADP1720ARMZ-5-R7 LDO 稳压器, 5 V输出, 50mA最大输出, ±2%精确度, 4 → 28 V输入
得捷:
IC REG LINEAR 5V 50MA 8MSOP
立创商城:
正 Vin=28V Vout=5V 50mA
e络盟:
芯片, 线性稳压器
艾睿:
This LDO ADP1720ARMZ-5-R7 linear regulator from Analog Devices is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.1@1mA|0.2@10mA|0.3@50mA V. This voltage regulation device&s;s single output can produce a current up to 0.05 A. Using the part will provide the power your application needs by requiring a voltage only of 4 V and not exceeding a voltage of 28 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.01% and line regulation of 0.15%. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 5V 0.05A 8-Pin MSOP T/R
Chip1Stop:
LDO Regulator Pos 5V 0.05A 8-Pin MSOP T/R
Verical:
LDO Regulator Pos 5V 0.05A 8-Pin MSOP T/R
Newark:
# ANALOG DEVICES ADP1720ARMZ-5-R7 Fixed LDO Voltage Regulator, 4V to 28V, 275mV Dropout, 5Vout, 50mAout, MSOP-8
DeviceMart:
IC REG LDO 5V 50MA 8-MSOP
输出接口数 1
输出电压 5 V
输出电流 50 mA
供电电流 2.12 mA
针脚数 8
静态电流 28 µA
跌落电压 275 mV
输入电压Max 28 V
输入电压Min 4 V
输出电流Max 0.05 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤28 V
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
长度 3.2 mm
宽度 3.2 mm
高度 0.95 mm
封装 MSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Heating Ventilation and Air Conditioning, White Goods and Vending, Building Technology, Building Control and Automation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP1720ARMZ-5-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP1720TRMZ5-EP 亚德诺 | 类似代替 | ADP1720ARMZ-5-R7和ADP1720TRMZ5-EP的区别 |
TPS79850QDGNRQ1 德州仪器 | 功能相似 | ADP1720ARMZ-5-R7和TPS79850QDGNRQ1的区别 |
TPS77450DGK 德州仪器 | 功能相似 | ADP1720ARMZ-5-R7和TPS77450DGK的区别 |
