Processor Supervisor 2.5V 1V to 5.5V 5Pin SOT-23 T/R
Product Details
The ADM6316/ADM6317/ADM6318/ADM6319/ADM6320/ADM6321/ADM6322 are supervisory circuits that monitor power supply voltage levels and code execution integrity in microprocessor-based systems. As well as providing power-on reset signals, an on-chip watchdog timer can reset the microprocessor if it fails to strobe within a preset timeout period. A reset signal can also be asserted by an external push button through a manual reset input. The seven devices feature different combinations of watchdog input, manual reset input, and output stage configuration.
Each device is available in a choice of 26 reset threshold options ranging from 2.5 V to 5 V in 100 mV increments. There are also four reset timeout options of 1 ms, 20 ms, 140 ms, and 1120 ms minimum and four watchdog timeout options of 6.3 ms, 102 ms, 1600 ms, and 25.6 sec typical.
The ADM6316/ADM6317/ADM6318/ADM6319/ADM6320/ADM6321/ADM6322 are available in 5-lead SOT-23 packages and typically consume only 3 μA, making them suitable for use in low power portable applications.
Applications
- .
- Microprocessor systems
- .
- Computers
- .
- Controllers
- .
- Intelligent instruments
- .
- Portable equipment
### Features and Benefits
- .
- 26 reset threshold options
- .
- 2.5 V to 5 V in 100 mV increments
- .
- 4 reset timeout options
- .
- 1 ms, 20 ms, 140 ms, and 1120 ms minimum
- .
- 4 watchdog timeout options
- .
- 6.3 ms, 102 ms, 1600 ms, and 25.6 sec typical
- .
- Manual reset input
- .
- Reset output stages
- .
- Push-pull active low
- .
- Open-drain active low
- .
- Push-pull active high
- .
- Low power consumption: 5 μA
- .
- Guaranteed reset output valid to VCC = 1 V
- .
- Power supply glitch immunity
- .
- Specified over industrial temperature range
- .

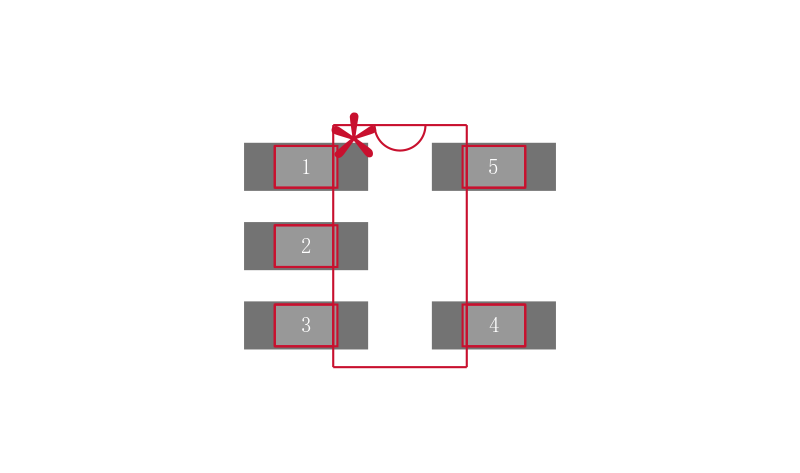

- 5-lead SOT-23 package
