公司的anyCAP 100毫安低压差线性稳压器 anyCAP 100 mA Low Dropout Linear Regulator
PMIC - 稳压器 - 线性 正 固定 1 输出 100mA SOT-23-5
得捷:
IC REG LINEAR 2.5V 100MA SOT23-5
立创商城:
ADP3309ARTZ-2.5RL7
艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO ADP3309ARTZ-2.5RL7 linear regulator manufactured by Analog Devices. It has an overall accuracy of ±1.2 %. Its typical dropout voltage at current is 0.004@1mA|0.025@10mA|0.12@100mA V. This voltage regulation device&s;s single output can produce a current up to 0.15Typ A. Use this part at voltages between 2.8 V and 12 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Users like the load regulation of 0.06mV/mATyp and line regulation of 0.02mV/VTyp. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has an operating temperature range of -20 °C to 85 °C. Its polarity is positive. The maximum dropout voltage is 0.015@1mA|0.07@10mA|0.25@100mA V.
Chip1Stop:
LDO Regulator Pos 2.5V 0.15A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 2.5V 0.1A 5-Pin SOT-23 T/R
输出接口数 1
输入电压DC 12.0V max
输出电压 2.5 V
输出电流 100 mA
供电电流 2.00 mA
跌落电压 0.025V @10mA,0.004V @1mA,0.12V @100mA
输入电压Max 12 V
输入电压Min 2.8 V
工作温度Max 85 ℃
工作温度Min -20 ℃
精度 ±1.2 %
输入电压 12 V
安装方式 Surface Mount
引脚数 5

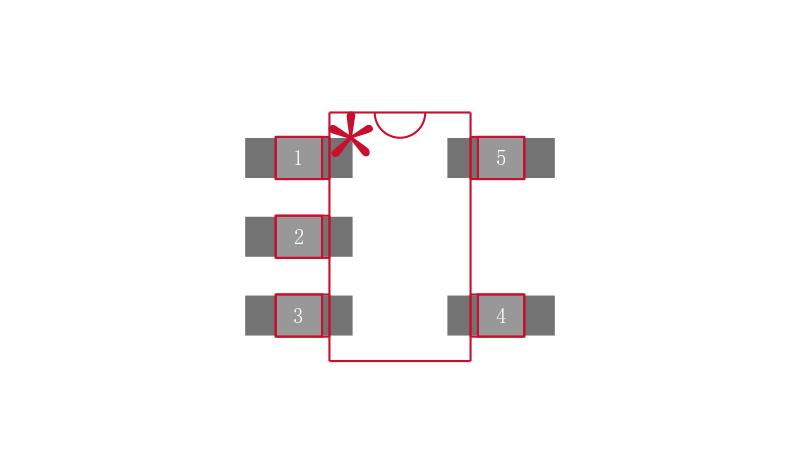

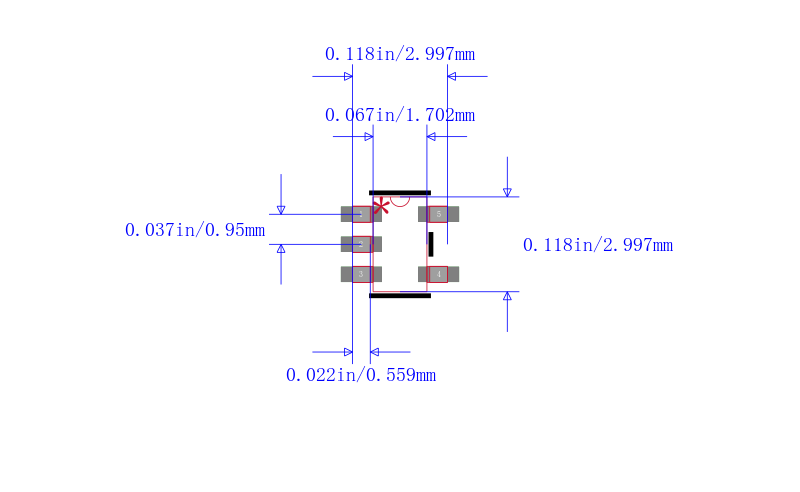

封装 SOT-23-5
封装 SOT-23-5
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
军工级 No
