ANALOG DEVICES ADM825LYRJZ-R7 监控器电路, 手动复位, 高电平有效, 低电平有效复位, 1.2V-5.5V输入, SOT-23-5
The ADM825 series Supervisory Circuit with watch dog and manual reset input. The ADM823/ADM824/ADM825 are supervisory circuits that monitors the power supply voltage levels and code execution integrity in microprocessor-based systems. A reset signal can also be asserted by an external push-button, through a manual reset input. The reset and watchdog timeout periods are fixed at 140ms minimum and 1.6 seconds typical, respectively.
- .
- Power supply glitch immunity
- .
- Specified over automotive temperature range
- .
- Guaranteed reset output valid to VCC=1V
- .
- 5µA Low power consumption
电源电压DC 1.20V min
供电电流 0.024 mA
针脚数 5
阈值电压 4.63 V
复位电压Min 4.56 V
复位电压Max 4.7 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 5

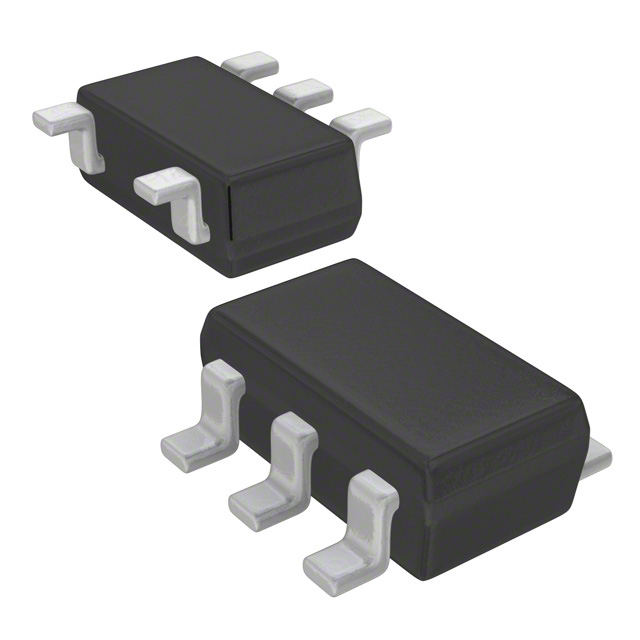

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, Automation & Process Control, Sensing & Instrumentation, 自动化与过程控制, 便携式器材, 电源管理, Computers & Computer Peripherals, Power Management, 传感与仪器, Automotive, Portable Devices, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM825LYRJZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADM824SYRJZ-REEL7 亚德诺 | 类似代替 | ADM825LYRJZ-R7和ADM824SYRJZ-REEL7的区别 |
ADM825LYRJ-R7 亚德诺 | 类似代替 | ADM825LYRJZ-R7和ADM825LYRJ-R7的区别 |
ADM825MYRJ-R7 亚德诺 | 类似代替 | ADM825LYRJZ-R7和ADM825MYRJ-R7的区别 |
