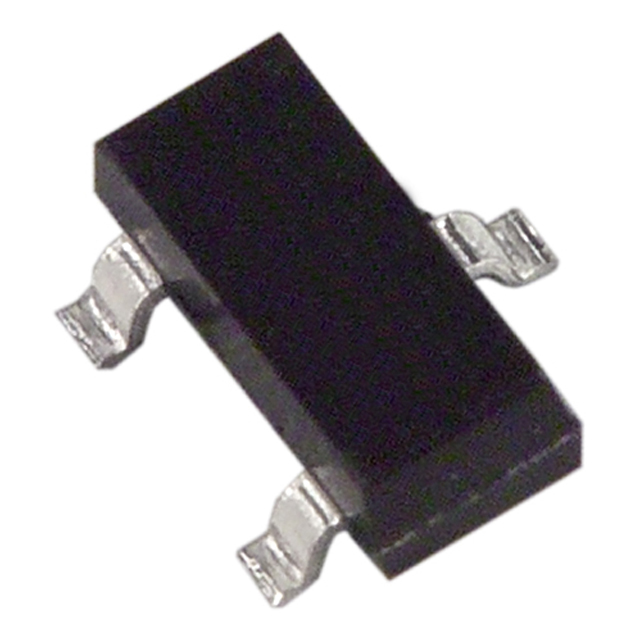

ANALOG DEVICES ADR525BRTZ-REEL7 芯片, 电压基准, 分流, 2.5V, TO-236AB-3
参考电压,2.5V,Analog Devices
### 电压参考,Analog Devices
精密固定和可调电压参考 IC 利用串联、并联或串联/并联拓扑,并提供通孔和表面安装封装。 电压参考的初始准确度为 ±0.02 至 ±2%。
得捷:
IC VREF SHUNT 0.2% SOT23-3
立创商城:
ADR525BRTZ-REEL7
欧时:
### 参考电压,2.5V,Analog Devices### 电压参考,Analog Devices精密固定和可调电压参考 IC 利用串联、并联或串联/并联拓扑,并提供通孔和表面安装封装。 电压参考的初始准确度为 ±0.02 至 ±2%。
e络盟:
芯片, 电压基准, 分流, 2.5V, SOT-23-3
艾睿:
Even in the event of large power supply variations, this ADR525BRTZ-REEL7 voltage reference power management device from Analog Devices can produce and maintain a precise DC voltage. With an output that has a voltage of 2.5 V, this is power management at its best. It has an initial accuracy of 0.2%. This voltage reference circuit supports shunt topology. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 85 °C. It runs with a maximum temperature coefficient of 40ppm/°C.
安富利:
V-Ref Precision 2.5V 15mA 3-Pin SOT-23 T/R
Chip1Stop:
V-Ref Precision 2.5V 15mA 3-Pin SOT-23 T/R
Verical:
V-Ref Precision 2.5V 15mA 3-Pin SOT-23 T/R
Newark:
# ANALOG DEVICES ADR525BRTZ-REEL7 Voltage Reference, High Precision, Shunt - Fixed, ADR525 Series, 2.5V, SOT-23-3
DeviceMart:
IC VREF SHUNT PREC 2.5V SOT-23-3
Win Source:
IC VREF SHUNT 2.5V SOT23-3
容差 ±0.2 %
输出电压 2.5 V
输出电流 15 mA
供电电流 50.0 µA
通道数 1
针脚数 3
输出电压Max 2.505 V
输出电压Min 2.5 V
输出电流Max 15 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.2 %
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 1.02 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃ TA
温度系数 ±40 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADR525BRTZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADR525BRT-R2 亚德诺 | 完全替代 | ADR525BRTZ-REEL7和ADR525BRT-R2的区别 |
ADR550BRTZ-REEL7 亚德诺 | 类似代替 | ADR525BRTZ-REEL7和ADR550BRTZ-REEL7的区别 |
ADR5040BRTZ-REEL7 亚德诺 | 类似代替 | ADR525BRTZ-REEL7和ADR5040BRTZ-REEL7的区别 |
