ADP124ARHZ-2.8-R7

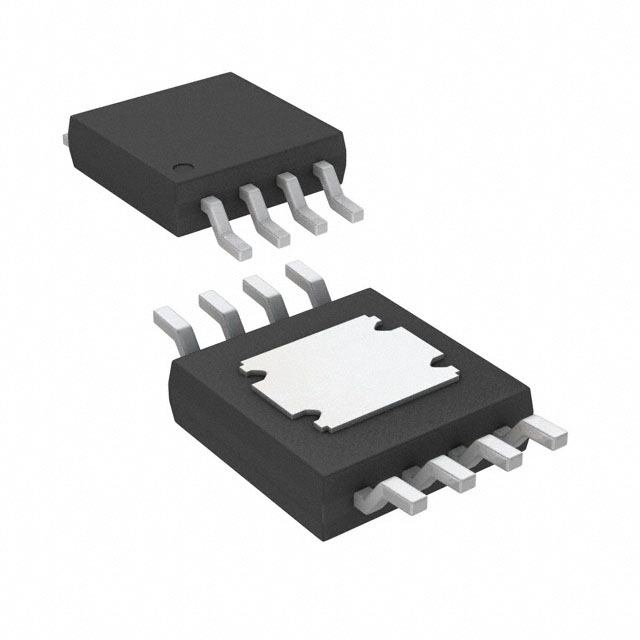

ADP124ARHZ-2.8-R7图片1
ADP124ARHZ-2.8-R7图片2
ADP124ARHZ-2.8-R7图片3
ADP124ARHZ-2.8-R7图片4
ADP124ARHZ-2.8-R7概述

5.5 V输入500毫安,低静态电流, CMOS线性稳压器 5.5 V Input, 500 mA, Low Quiescent Current, CMOS Linear Regulators

Don"t let unpredictable voltage levels ruin your circuit! Use this LDO linear regulator from Analog Devices to control your voltage levels! Its typical dropout voltage at current is 0.003@10mA|0.065@250mA|0.13@500mA V. It has an overall accuracy of ±1 %. This voltage regulation device"s single output can produce a current up to 0.5 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.3 V and no higher than 5.5 V. With a fixed output that has a voltage of 2.8 V, this is power management at its best. Users like the load regulation of 0.0005%/mATyp and line regulation of 0.05%/V. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. The maximum dropout voltage is 0.005@10mA|0.12@250mA|0.23@500mA V.

ADP124ARHZ-2.8-R7中文资料参数规格
技术参数

输出接口数 1

输出电压 2.8 V

输出电流 500 mA

供电电流 45.0 µA

静态电流 0.045 mA

跌落电压 0.003V @10mA,0.065V @250mA,0.13V @500mA

输入电压Max 5.5 V

输入电压Min 2.3 V

输出电流Max 0.5 A

工作温度Max 85 ℃

工作温度Min -40 ℃

精度 ±1 %

输入电压 ≤5.5 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 TSSOP-8

外形尺寸

高度 0.86 mm

封装 TSSOP-8

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

军工级 No

数据手册

ADP124ARHZ-2.8-R7引脚图与封装图
ADP124ARHZ-2.8-R7引脚图
ADP124ARHZ-2.8-R7封装图
ADP124ARHZ-2.8-R7电路图
ADP124ARHZ-2.8-R7封装焊盘图
在线购买ADP124ARHZ-2.8-R7
型号: ADP124ARHZ-2.8-R7
制造商: ADI 亚德诺
描述:5.5 V输入500毫安,低静态电流, CMOS线性稳压器 5.5 V Input, 500 mA, Low Quiescent Current, CMOS Linear Regulators
替代型号ADP124ARHZ-2.8-R7
型号/品牌 代替类型 替代型号对比

ADP124ARHZ-2.8-R7

ADI 亚德诺

当前型号

当前型号

TPS77428DGK

德州仪器

功能相似

ADP124ARHZ-2.8-R7和TPS77428DGK的区别

TPS77428DGKG4

德州仪器

功能相似

ADP124ARHZ-2.8-R7和TPS77428DGKG4的区别
